The TPS62231-Q1 series is a high frequency synchronous step-down DC-DC converter that is ideal for battery powered portable applications. It supports output currents of up to 500mA and allows the use of small and low cost chip inductors and capacitors.

Product attributes

Function Step-down

Output Configuration Positive

Topology Step-Down

Output Type Fixed

Number of Outputs 1

Voltage - Input (Min) 2.05V

Voltage - Input (Max) 6V

Voltage - Output (Min/Fixed) 1.8V

Voltage - Output (Max) -

Current - Output 500mA

Frequency - Switching 3MHz

Synchronous Rectifier Yes

Operating Temperature -40°C ~ 125°C (TJ)

Mounting Type Surface Mount Type

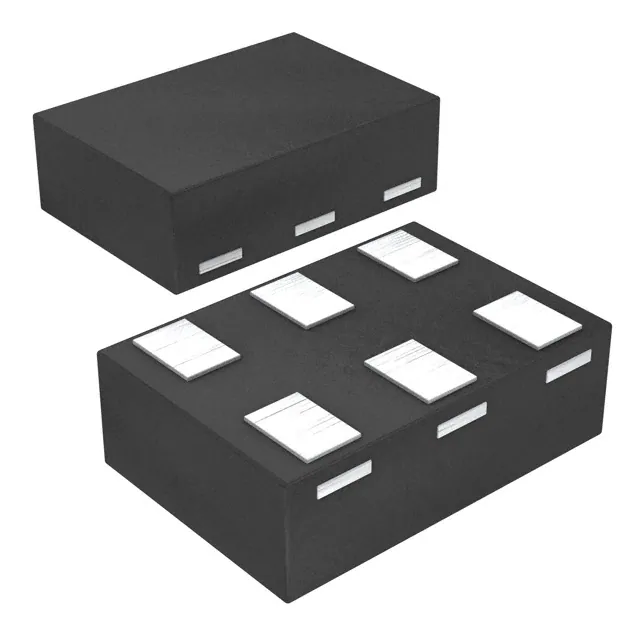

Package / Housing 6-UFDFN

Supplier Device Package 6-SON (1.45x1)

Applications

- Low dropout (LDO) replacement

- Portable audio, portable media

- Mobile phones

- Low-power wireless applications

- Low-power digital signal processor (DSP) core power supplies

- Digital video cameras
