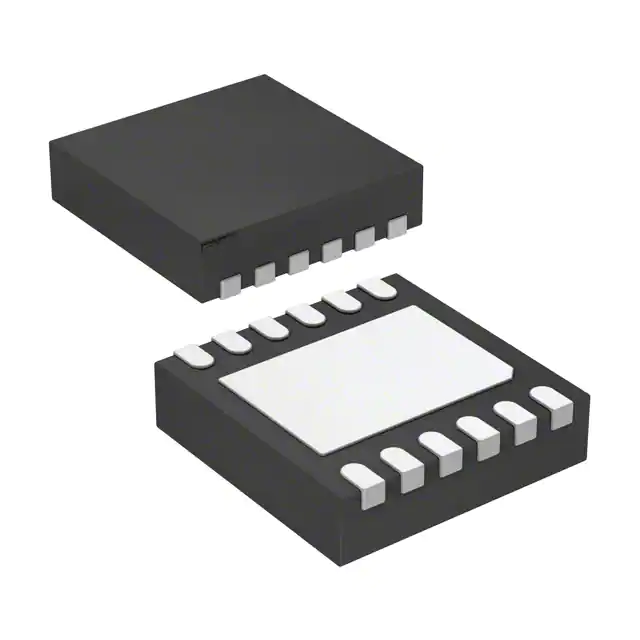

The LMR23630-Q1 SIMPLE SWITCHER® is an easy-to-use 36V, 3A synchronous buck regulator. With a wide input range of 4V to 36V, the device is suitable for voltage regulation of non-regulated power supplies in a wide range of applications from industrial to automotive. Peak current mode control is used for simple control loop compensation and cycle-by-cycle current limiting. The quiescent current is as low as 75µA, making it suitable for battery powered systems. Internal loop compensation means that the user does not have to take on the tedious task of designing the loop compensation components. This also minimises the number of external components. The device also features a constant frequency FPWM mode, which allows for low output voltage ripple at light loads. The extended family of devices offers a 1A load current option in a pin-to-pin compatible package, allowing for a simple and optimal PCB layout. The use of precision enable inputs simplifies regulator control and system power sequencing. Protection features include cycle-by-cycle current limiting, intermittent mode short circuit protection and thermal shutdown due to excessive power dissipation.

Features

- Compliant with automotive applications

- The following characteristics are available in accordance with AEC-Q100:

- Device temperature class 1: Ambient operating temperature range of -40°C to +125°C

- Device HBM ESD classification class 2

- Device CDM ESD classification class:

- SOIC and WSON with RT - Class C4B

- WSON with PGOOD - Class C5

- Input range 4V to 36V

- 3A continuous output current

- Minimum on-time: 60ns

- Built-in compensation for ease of use

- 400kHz fixed and adjustable switching frequency options

- Pulse Frequency Modulation (PFM) and Forced Pulse Width Modulation (PWM) modes available under light load conditions

- Synchronised with external clock frequency

- Quiescent current of 75µA under no load conditions for the PFM option

- Power normal option

- Soft-start to pre-biased load

- High duty cycle operation mode supported

- Output short circuit protection with intermittent mode

- 8-pin HSOIC and 12-pin WSON wettable sides with PowerPAD™ package options

- Create custom designs using a combination of the LMR23630-Q1 and WEBENCH® Power Designer

Applications

- Automotive infotainment systems: instrument clusters, audio mainframes, head-up displays

- USB charging

- General battery powered applications
