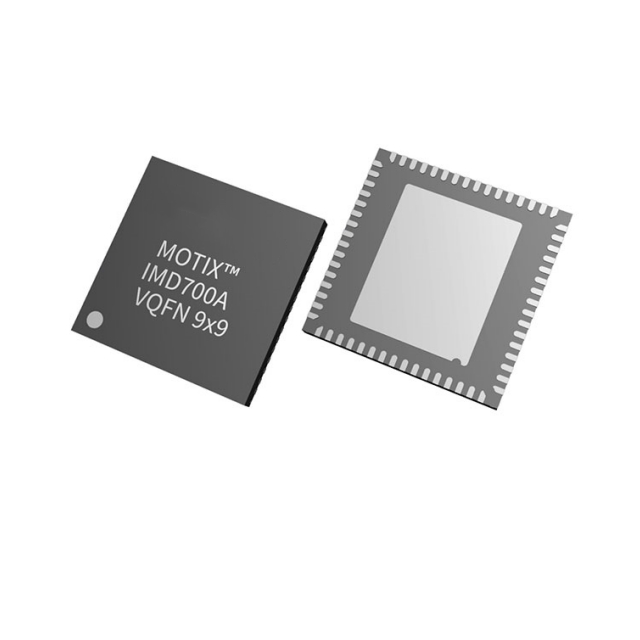

The IMD700AQ064X128AAXUMA1 is a controller designed for 3-phase BLDC or PMSM driver applications. It integrates the fully programmable XMC1404 ARM® Cortex®-M0 microcontroller from Infineon's XMC1400 family and the 60V 3-phase smart gate driver from the 6EDL7141 integrated power supply. Integrating these two devices enables ultra-compact designs for drive applications, including not only the microcontroller and flexible three-phase gate driver, but also the full set of power supplies (synchronous buck converter and LDO) required for the system, three current-sense amplifiers, protection devices, and an excellent set of configurations to meet specific needs.

Product Attributes

Core processor: ARM® Cortex®-M0

Programme memory type: Flash (128kB)

Controller Family: XMC1404

RAM size: 16K x 8

Interfaces: CAN, I²C, SPI, UART/USART

Number of I/Os: 20

Voltage - Supply: 5.5V ~ 60V

Operating Temperature: -40°C ~ 115°C (TJ)

Mounting Type: Surface Mount

Package/Shell: 64-WFQFN Exposed Pad

Supplier Device Package: PG-VQFN-64-8

Applications

● Battery-powered power tools and gardening tools

● Robotic lawnmowers

● Electric bicycles

● Robots, remote-controlled toys, consumer drones and multi-rotors

● Pumps and fans

● Other 3-phase BLDC and PMSM motors
