The DRV5057A4EDBZRQ1 is a linear Hall effect sensor that responds proportionally to magnetic flux density. The device can be used for precise position detection in a wide range of applications.

The device is powered from a 3.3V or 5V supply. The output generates a 50% duty cycle clock when no magnetic field is present. The output duty cycle varies linearly with the applied magnetic flux density, and four sensitivity options maximise the output dynamic range according to the desired sensing range. The north and south poles produce unique outputs. Typical pulse width modulation (PWM) carrier frequency is 2kHz.

Features

- Automotive orientated standard compliance

- Temperature class 0: -40°C to 150°C

- PWM Output Linear Hall Effect Magnetic Sensors

- Powered by 3.3V and 5V supplies

- 2kHz clock output with 50% static duty cycle

- Magnetic sensitivity option (at VCC = 5V): 0.25% D/mT, ±168mT range

- Open-drain output with 20mA sink current capability

- Magnet temperature drift compensation

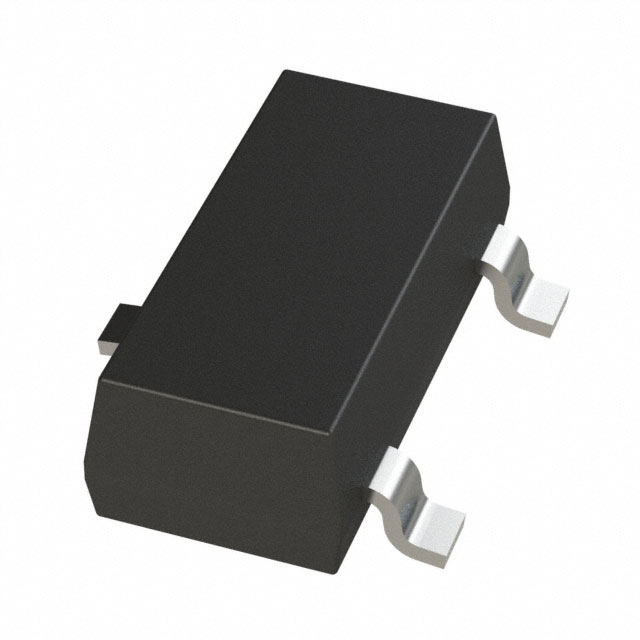

- Industry standard package: surface mount SOT-23

Applications

- Automotive position detection

- Brake pedal, accelerator, clutch pedal

- Torque sensors, gear shifters

- Throttle position, height levelling

- Drivetrain and transmission components

- Absolute angle encoding

- Current detection
