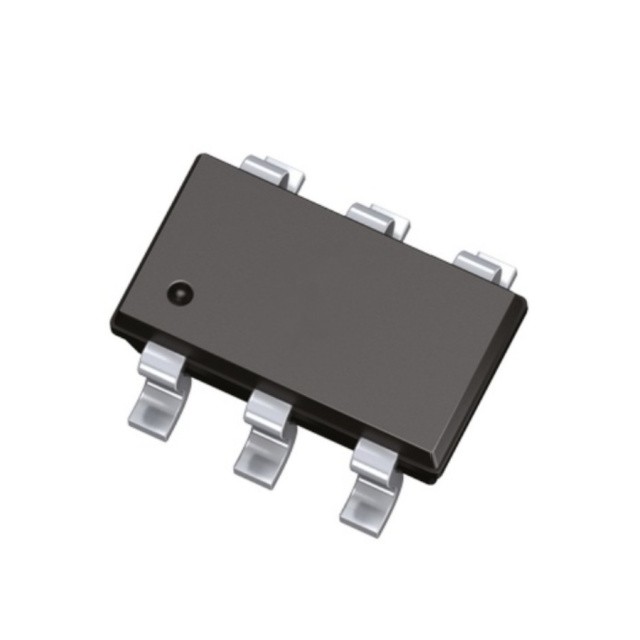

For picture reference, please see the specifications
< >

Commodity Model:TLE49662GHTSA1

Trade Name:TLE49662GHTSA1

Data Manual:TLE49662GHTSA1.pdf

Brand:INFINEON

Particular Year:23+

Package:TSOP-6

Delivery Date:New and Original

Stock: 2400pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
TLE49662GHTSA1
Package
TSOP-6
Describe
Digital Switch Special Purpose Digital Hall Effect PG-TSOP6-6-9

Product Description

The Infineon TLE49662GHTSA1 is an integrated circuit dual Hall effect sensor designed for high precision applications. The on-chip active compensation circuitry and chopper technology achieve precise magnetic switching points and high temperature stability.


Features

Operates from 2.7V to 24V supply voltage

Operates from an unregulated power supply

High sensitivity and stability High sensitivity and stability of the magnetic switching point

High resistance to mechanical stresses Compensation through active errors

Reverse battery protection (-18V)

Excellent temperature stability

Peak temperatures up to 195°C

Low jitter (1μs typical)

Digital output signals

Excellent matching of 2 Hall probes

Hall plate spacing 1.45 mm

Two independent speed outputs

SMD package PG-TSOP6-6-9


Product Properties

Product Category: Board Interface Hall Effect/Magnetic Sensors

Type: High Precision

Operating supply current: 5.2 mA

Maximum output current: 10 mA

Operating point min/max: 5 mT to 10 mT

Min/Max Release Point (Brp): - 10 mT to - 5 mT

Operating supply voltage: 2.7 V to 18 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 150 C

Mounting style: SMD/SMT

Package / Case: TSOP-6

Series: TLE4966

Output voltage: - 700 mV to 18 V

Supply voltage - max: 18 V

Supply voltage - min: 2.7 V
