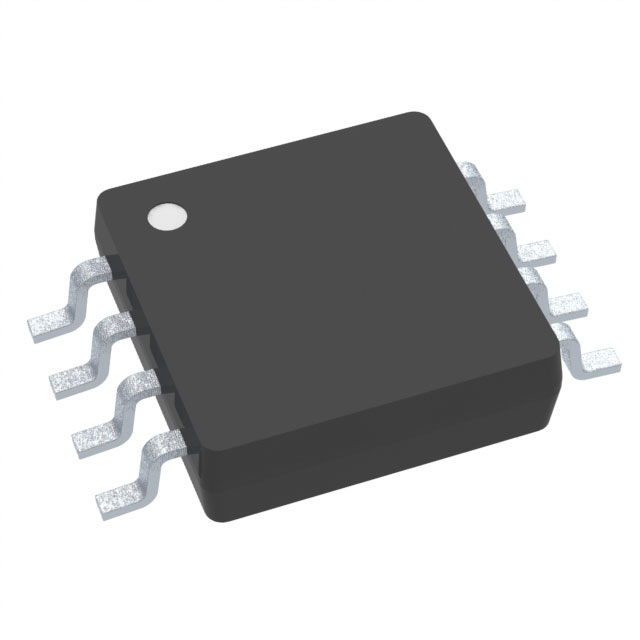

TMAG5170A1EDGKRQ1 is a high-precision linear 3D Hall-effect sensor designed for a wide range of automotive and industrial applications. The high level of integration offers flexibility and accuracy in a variety of position sensing systems. This device features 3 independent Hall sensors at X, Y, and Z axes.

Features

AEC-Q100 qualified for automotive applications

Temperature grade 0: –40°C to 150°C

High-precision linear 3D Hall-effect sensor to optimize position sensing speed and accuracy:

Linear measurement total error: ±2.6%

Sensitivity temperature drift: ±2.8% (maximum)

20-kSPS conversion rate for single axis

Developed for functional safety applications

Documentation available to aid ISO 26262 system design

Systematic capability up to ASIL D

Hardware integrity up to ASIL B

10-MHz serial peripheral interface (SPI) with cyclic redundancy check (CRC)

Built-in temperature sensor with < ±3°C error

Autonomous wake-up and sleep mode for threshold detection consuming only 1.5 µA

Integrated temperature compensation for multiple magnet types

Integrated angle CORDIC calculation with gain and offset adjustment

2.3-V to 5.5-V supply voltage range

Applications

Steering column control

Steering wheel control

Shifter systems

E-bikes

Wiper modules

Actuators
