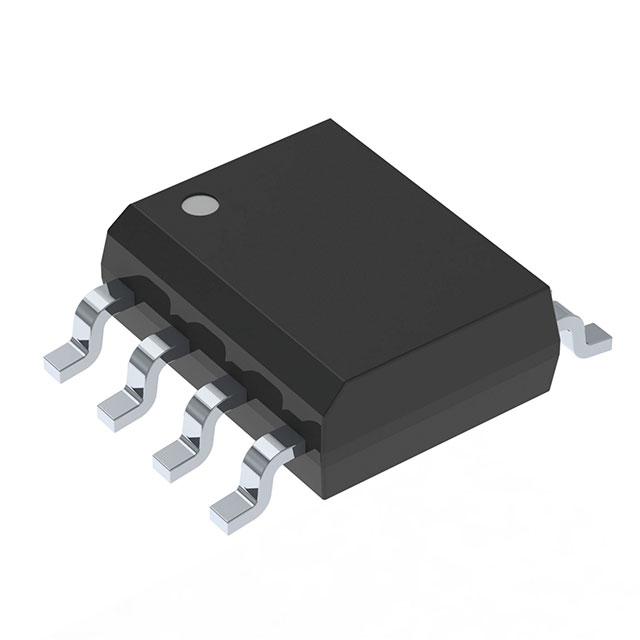

For picture reference, please see the specifications
< >

Commodity Model:TLE5012BE5020XUMA1

Trade Name:TLE5012BE5020XUMA1

Data Manual:TLE5012BE5020XUMA1.pdf

Brand:INFINEON

Particular Year:23+

Package:8-SOIC

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
TLE5012BE5020XUMA1
Package
8-SOIC
Describe
Magnetoresistive Sensor Angle External Magnet without Gull Wing

Product Description

The TLE5012BE5020XUMA1 is a 360° angle sensor that detects the direction of a magnetic field. This is achieved by measuring sinusoidal and cosinusoidal angle components using a monolithic integrated giant magnetoresistive (iGMR) element. These raw signals (sine and cosine) are processed internally digitally to calculate the angular direction of the magnetic field (magnet).


The TLE5012BE5020XUMA1 is a pre-calibrated sensor. The calibration parameters are stored in the laser fuse. On start-up, the fuse values are written to the trigger and these values can be changed according to application-specific parameters. By enabling the optional internal auto-calibration algorithm, the accuracy of the angular measurement can be further improved over a wide temperature range and a long service life.


Features

- Based on the Giant Magneto Resistance (GMR) principle

- Integrated magnetic field sensor for angle measurement

- 360° angle measurement with rotation counter and angular velocity measurement

- Two independent high-precision single-bit SD-ADCs

- Absolute angle values expressed in 15 bits at the outputs (resolution 0.01°)

- Sine/cosine values on the interface are expressed in 16 bits

- Maximum angular error 1.0° over the entire service life and temperature range with automatic calibration activated

- Bidirectional SSC interface up to 8 Mbit/s

- Supports Safety Integrity Level (SIL) with diagnostic functions and status information

- Interfaces: SSC, PWM, Incremental Interface (IIF), Hall Switching Mode (HSM), Short PWM Code (SPC, based on SENT protocol defined in SAE J2716)

- Output pins can be configured (programmed or pre-configured) as push-pull or open-drain

- Multiple sensors can be operated in bus mode on a single line via the SSC or SPC interface

- 0.25-micron CMOS technology

- Automotive compliant: -40°C to 150°C (junction temperature)

- ESD > 4 kV (HBM)

- RoHS compliant (lead-free package)

- Halogen-free


Potential Applications

The angle sensor based on the TLE5012B GMR is designed for angular position sensing in automotive applications such as:

- Electrically commutated motors (such as those used in electric power steering (EPS) systems)

- Rotary switches

- Steering angle measurements

- General angle sensing
