The new TLE49681MXTMA1 Hall switch saves energy and enables designers to create precise, compact systems. With a current consumption of only 1.6mA compared to competitive products, the TLE49681MXTMA1 products can reduce energy consumption by up to 50 per cent. Due to its small hysteresis, the series facilitates the precision of the switching points in the system. The integrated temperature profile compensates for magnetic drift, enabling stable performance as well as guaranteed lifetime under over-temperature conditions.

Product Attributes

Function: Bipolar switch

Technology: Hall effect

Polarisation: North pole, South pole

Sensing range: 2.25mT trip, -2.25mT release

Test Conditions: 25°C

Voltage - Supply: 3V ~ 32V

Current - Supply (Max): 2.5mA

Current - Output (Max): 25mA

Output Type: Open Drain

Features: Temperature Compensated

Operating Temperature: -40°C ~ 170°C (TJ)

Mounting Type: Surface Mount

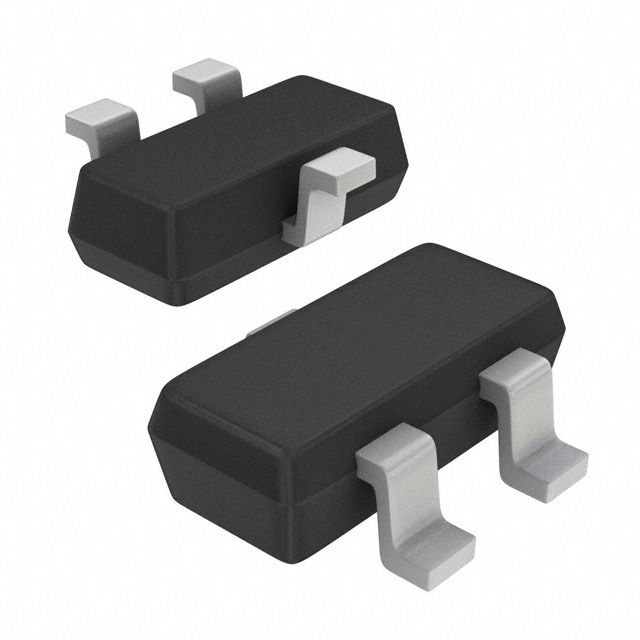

Supplier Device Package: PG-SOT23-3-15

Package/Housing: TO-236-3, SC-59, SOT-23-3

Applications

● BLDC rotor position measurement

● Speed and position measurement for camshaft or gearbox applications
