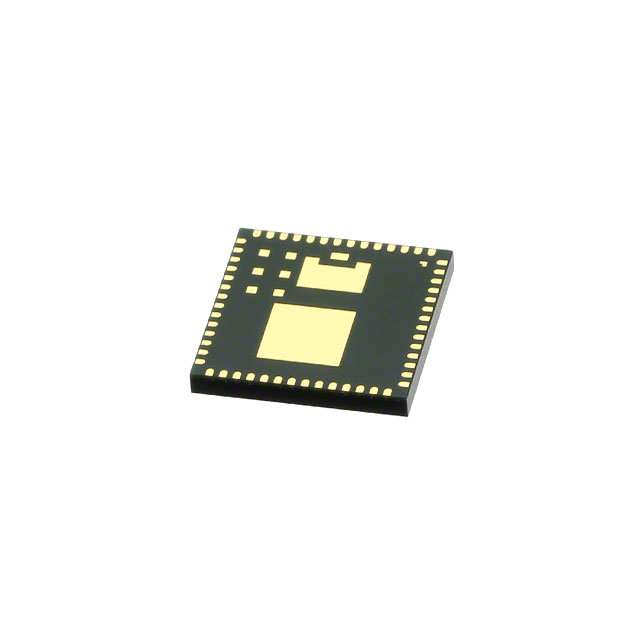

MKW21D256VHA5R is a low power, high-performance 2.4GHz IEEE 802.15.4 compliant radio transceiver. It provides four output driver ports that can have both drive strength and slew rate configured to control external peripheral devices.

Product Attributes

Type: TxRx + MCU

RF Family/Standard: 802.15.4

Protocol: Zigbee®

Modulation: DSSS, O-QPSK

Frequency: 2.4GHz

Data Rate (Max): 250kbps

Power - Output: 8dBm

Sensitivity: -102dBm

Memory Size: 256kB Flash, 32kB SRAM

Serial Interfaces: I²C, JTAG, SPI, UART

GPIO: 2

Voltage - Supply: 1.8V ~ 3.6V

Current - Receiving: 15mA

Current - Transmitting: 19mA

Operating Temperature: -40°C ~ 105°C

Mounting Type: Surface Mount

Package / Case: 63-VFLGA

Supplier Device Package: 63-MAPLGA (8x8)

Product Features

50 MHz Cortex-M4 CPU with DSP capabilities

Up to 512 KB of flash memory

Up to 64 KB of SRAM

Up to –102 dBm receiver sensitivity

+8 dBm maximum transmit output power

Up to 58 dBm channel rejection

Voltage range: 1.8 V to 3.6 V

Ambient temperature range: –40°C to 105°C
