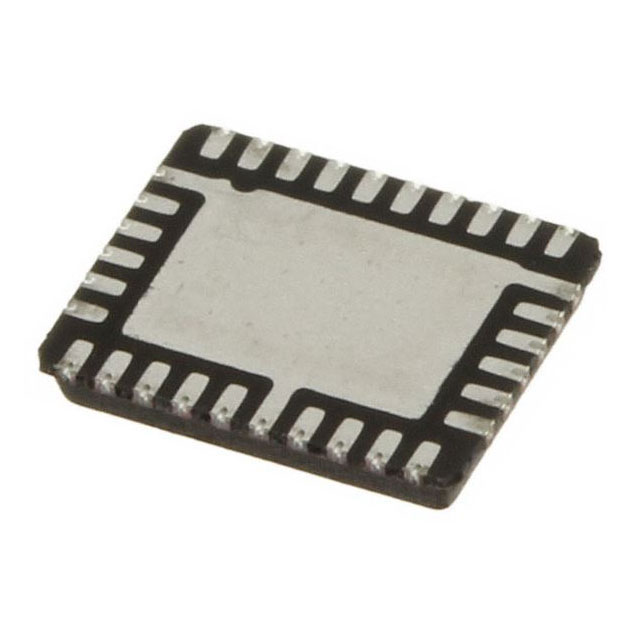

Trade Name:BGT24AR4E6433
Data Manual:BGT24AR4E6433.pdf
Brand:INFINEON
Particular Year:23+
Package:QFN-32
Delivery Date:New original
Stock: 3000pcs
BGT24AR4E6433 is a Silicon Germanium MMIC, accommodating four separate homodyne receiver chains. Each receiver consists of a downconverter operating in the 24 GHz ISM band. LO buffer amplifiers are included to relax LO drive requirements. IF signal filtering and amplification is provided on chip.
Features
Gilbert based quad homodyne 24 GHz downconverter with integrated IF filters and programmable gain base band amplifiers
Single ended RF terminals
Low single side band noise figure: NFssb = 10 dB typ.
High downconverter P1dB input compression point: -6 dBm typ.
Low LO input power required: -6 dBm
On chip LO level and temperature sensors
Muliplexed output of analog sensor signals
Integrated saturation detectors for downconverters and IF amplifiers
Disable mode for downconverter and base band amplifiers via SPI
IF chain testability
Single supply voltage: 3.3 V typ.
Low power consumption: 610 mW typ.
200 GHz bipolar SiGe:C technology b7hf200
Fully ESD protected device
VQFN-32-9 leadless plastic package including lead-tip-inspection (LTI) feature
