The TPS929240QDCPRQ1 is a 24-channel 40V high-side LED driver with 8-bit output current and 12-bit PWM duty cycle control. The device features open LED, short to ground, and single LED short circuit diagnostics to meet a variety of regulation requirements. A configurable watchdog also automatically sets the failsafe state when MCU connectivity is lost. The programmable EEPROM provides the flexibility to configure the TPS929240-Q1 for different application scenarios.

Product Attributes

Type: Linear

Topology: Constant Current

Internal Switches: None

Number of Outputs: 24

Voltage - Supply (minimum): 4.5V

Voltage - Supply (Max): 40V

Voltage - Output: 4V ~ 36V

Current - Output/Channel: 100mA

Frequency: 32.15MHz

Dimming: Analogue, PWM

Applications: Automotive

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

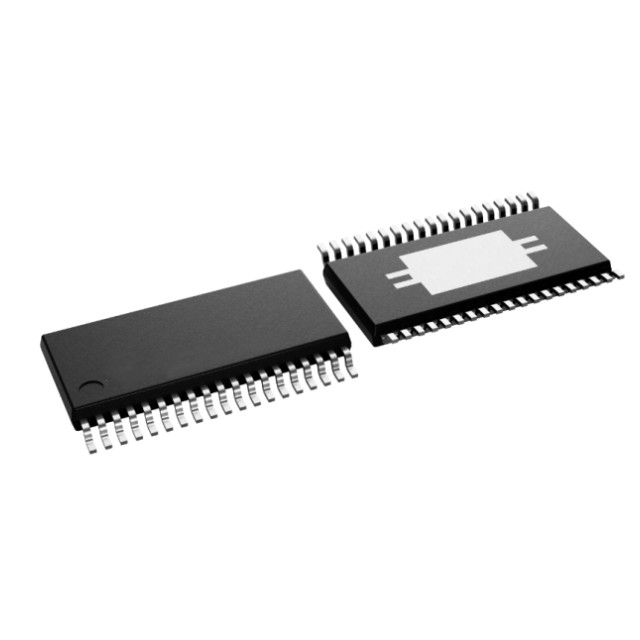

Package/Housing: 38-PowerTFSOP (0.173", 4.40mm Width)

Supplier Device Package: 38-HTSSOP

Applications

- Automotive exterior taillights

- Automotive exterior headlamps

- Interior ambient lighting

- Automotive instrument cluster displays
