Transistor output opto-coupler VOM617A-8X001T 3750Vrms 1-channel 4-SOP

Transistor output opto-coupler VOM617A-8X001T 3750Vrms 1-channel 4-SOP

Source:our siteTime:2022-11-19Views:

Shenzhen Mingjiada Electronics supply transistor output photocoupler VOM617A-8X001T 3750Vrms 1-channel 4-SOP, new and original, price advantage, real single has accepted price can be discussed in detail, welcome to consult!

Shenzhen Mingjiada Electronics supply transistor output photocoupler VOM617A-8X001T 3750Vrms 1-channel 4-SOP, new and original, price advantage, real single has accepted price can be discussed in detail, welcome to consult!


The VOM617A low input current SOP-4 photocouplers provide GaAs infrared emitting diodes optically coupled to silicon planar phototransistor detectors. These phototransistor output optocouplers are available in a compact SOP-4 mini-flat package, saving 30% PCB space compared to a DIP-4 package. These devices also feature a high current transfer ratio, low coupling capacitance and high isolation voltage. Rated at 110ºC, the devices also offer a low input current of 5mA and can be selected from up to nine different current transfer ratios (CTR) ranging from 40% to 600%, which provides designers with greater flexibility. These coupling devices are designed for signal transfer between two electrically separated circuits.

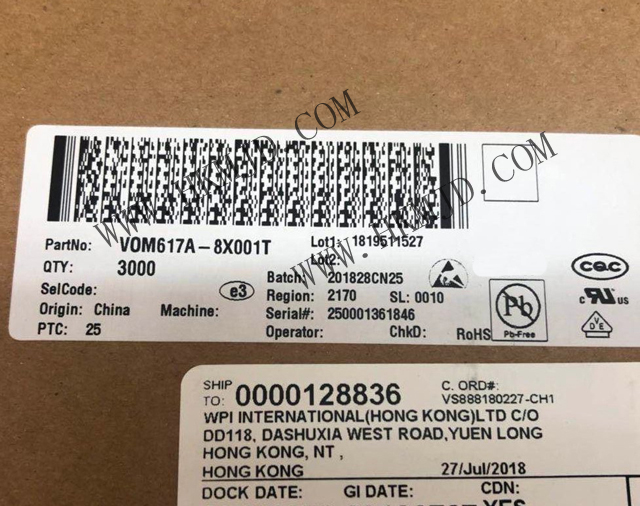

Model: VOM617A-8X001T

Brand: VISHAY

Year: 18+

Package: SOP4

Specifications.

Number of channels 1

Voltage - Isolated 3750Vrms

Current Transfer Ratio (min) 130% @ 5mA

Current Transfer Ratio (Max) 260% @ 5mA

On/Off time (typical) 6µs, 4µs

Rise/fall time (typical) 3µs, 3µs

Input type DC

Output Type Transistor

Voltage - Output (Max) 80V

Current - Output/Channel 50mA

Voltage - Forward (Vf) (Typ.) 1.1V

Current - DC Forward (If) (Max) 60 mA

Vce Saturation Drop (Max) 400mV

Operating Temperature -55°C ~ 110°C

Mounting Type Surface Mount Type

Package / Housing 4-SMD, Gull Wing

Supplier Device Package 4-SOP


Applications

PLC

Telecom

Lighting control systems

Solar inverters

AC drives
