2.4 & 5 GHz RF Front End TQP6M9002 Amplifies 802.11a/b/g/n Wi-Fi and Bluetooth signals

2.4 & 5 GHz RF Front End TQP6M9002 Amplifies 802.11a/b/g/n Wi-Fi and Bluetooth signals

Source:our siteTime:2022-11-17Views:

Mingjiada supplies the new and original 2.4 & 5 GHz RF front-end TQP6M9002 to amplify 802.11a/b/g/n Wi-Fi and Bluetooth signals at a competitive price.

Mingjiada supplies the new and original 2.4 & 5 GHz RF front-end TQP6M9002 to amplify 802.11a/b/g/n Wi-Fi and Bluetooth signals at a competitive price.

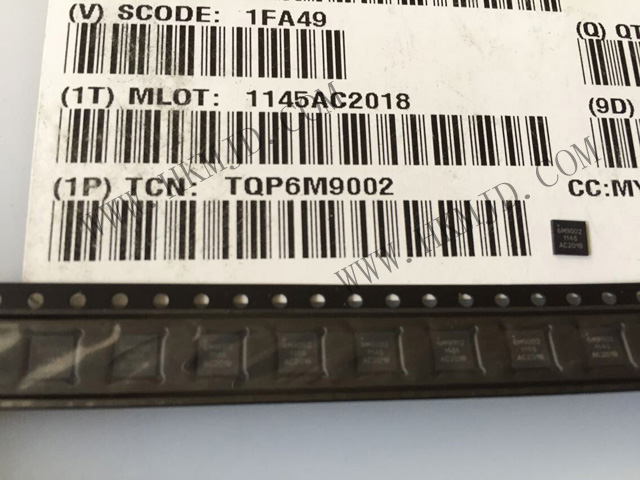

The TQP6M9002 is an ultra-compact 4 mm x 4 mm package front-end module that amplifies 802.11 a/b/g/n and Bluetooth® signals. The TQP6M9002 contains a 2.4 GHz power amplifier, 5 GHz power amplifier, direction detector, front-end switch, Bluetooth path and receive balance-unbalance converter. The architecture and interface are optimised for integration of next generation WLAN into mobile devices. The front-end module features CMOS-compatible control voltages for ease of use. The front-end module is manufactured using Qorvo's high reliability E/D pHEMT technology and is assembled in a 4 x 4 x 0.5 mm ETSLP-24 lead-free thin package.


Functional parameters

Frequency Min(GHz)： 2.4

Frequency Max(GHz)： 5.85

Functionality： PAs, Switches

Wi-Fi Standards： Wi-Fi a/b/g/n & Bluetooth® signal frequency

2.4GHz 11g/n Pout(dBm)： 15.5

5GHz 11a/n Pout(dBm)： 15

5GHz Tx Gain(dB)： 34

5GHz Rx Gain(dB)： 32

2.4GHz 11g/n EVM(%)： 3.8

5GHz 11a/n EVM(%)； 3.5

Vcc(V) ：3.6

11g/n Current(mA) ：110

11a/n Current(mA) ：160

Package Type： ETSLP

Package(mm)： 4.0 x 4.0 x 0.55


Typical applications

Amplifying Bluetooth® signals

Portable battery powered devices

Wireless Local Area Networks (WLAN)
