Product Description:

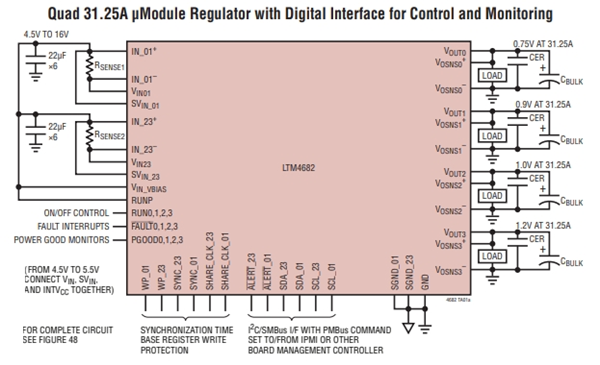

The LTM4682 Thin μModule regulator is a 31.25A four-channel or 125A single-channel step-down power micro module DC/DC regulator. These devices feature remote configurability and telemetry monitoring of power management parameters via PMBus. The LTM4682 is optimized for higher bandwidth and transient response, including a digital programmable analog control loop. The LTM4682 is available in a 15mmx22mmx5.71mm BGA package with SnPb or RoHS compliant terminal coating.

The LTM4682's 2-wire serial interface allows margin adjustment, tuning, and ramp up/down of the output at programmable conversion rates and sort delay times. True input current detection, output current, output voltage, output power, temperature, uptime and peak value can be read. There is no need to customize EEPROM content. At startup, the output voltage, switching frequency, and channel phase Angle allocation can be set by pin-bonded resistors.

Features:

Four-channel digitally adjustable analog loop with digital interface for control and monitoring

Wide input voltage range: 4.5V to 16V

Output voltage range: 0.7V to 1.35V

Dc output accuracy: ±0.5% (0.75V)

Current read back accuracy: ±4.5% (0°C to +125°C)

Optimized for low output voltage ranges

400kHz PMBus compatible with I2C serial interface

Supports telemetry polling frequencies up to 125Hz

Integrated 16 bit ∆Σ ADC

Multiple modules can be paralleled and current equalized

15 mm x 22 mm x 5.71 mm BGA package

Readable data

Input and output voltage, current and temperature

Run pak values, uptime, faults, and warnings

Onboard EEPROM fault record

Writable data and configurable parameters

Output voltage, voltage sequencing and margin regulation

Digital soft start/stop ramp and program analog loop

Overvoltage (OV)/Undervoltage (UV)/overheat (OT), undervoltage blocking (UVLO), frequency and phase modulation

Related products:

LTM4682EY

LTM4682IY

Applications:

Multitrack processor power supply

Configurable kernel power supply
