Disassembling the main internal chip of the iPhone 14 Pro Max - SKY5xx92-16 power amplifier module

Disassembling the main internal chip of the iPhone 14 Pro Max - SKY5xx92-16 power amplifier module

Source:our siteTime:2022-11-04Views:

Mingjiada supplies brand new and original SKY5xx92-16 power amplifier module at competitive price, large factory stock, quality assurance, welcome to contact!

Mingjiada supplies brand new and original SKY5xx92-16 power amplifier module at competitive price, large factory stock, quality assurance, welcome to contact!


If you are curious about the chip on the new iPhone 14 Pro Max (model A2651), then please scroll down to see.

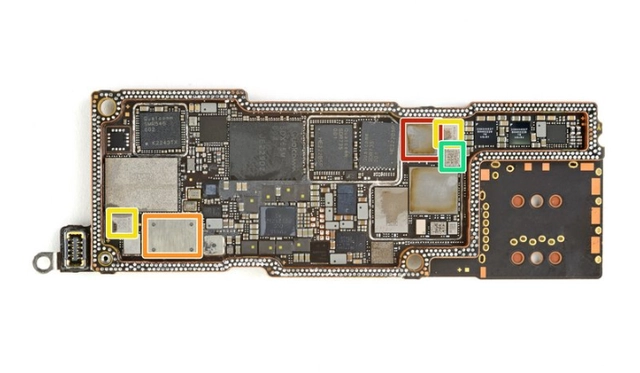

Sandwich layer chip distribution


The chips corresponding to the different colours are shown below.

Red: Broadcom AFEM-8240 front-end module

Orange: (possibly) Skyworks SKY58853-17? Front-end module

Yellow: (possibly) Skyworks SKY52628 antenna switch module

Green: (possibly) Skyworks SKY5xx92-16 amplifier module


Also supplied disassembled Apple 14 Pro Max Main electronic components.

338S00537 Audio amplifier

PMX65 Power Management Chip

QET7100 Envelope Tracer

PM-K65 Clock Generator

SN210VUK/B101MU NFC Controller

AFEM-8231 Front End Module

SKY58290-20 Front-end Module

AFEM-8240 Front End Module

SKY58853-17 Front End Module

SKY52628 Antenna Switch Module

SKY5xx92-16 Power Amplification Module

Disassembling the iPhone 14 Pro Max: Skyworks SKY52628 Antenna Switch Module Return to
column Interface IC MCZ33905 MCZ33905DD5EKR2 2nd Generation System Basis Chip HSSOP54
