Overview:

The MLX91377GGO-ADB-000 is a linear Hall sensor IC consisting of a Hall-effect magnetic front end, an analog-to-digital converter, and a signal processor. With high performance, high safety levels and redundant packaging options, this IC is ideal for safety-critical systems in automotive or industrial applications.

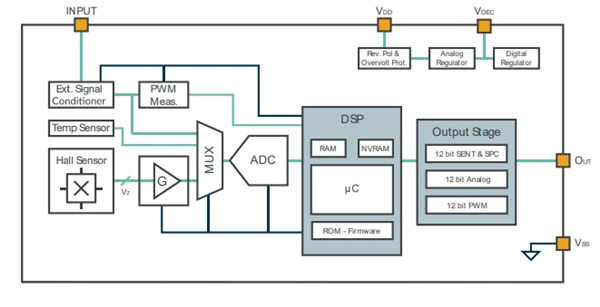

The MLX91377 integrates Hall components, a signal regulator, a digital signal processor, and a flexible output stage that provides analog, SENT, or short PWM code (SPC) outputs. Multi-point field linearization and magnet drift compensation ensure high performance and accuracy at room temperature and in the operating temperature range from -40°C to 160°C. The wide absolute maximum rating, which includes -18 to 28V supply and output voltage ranges, guarantees the IC's robustness against external interference and transient voltages.

The MLX91377 is an AECQ-100 class automotive product in lead-free RoHS packaging. The IC can be programmed in combination with the PTC-04 programmer and the Hall-06 subboard.

Product: MLX91377GGO-ADB-000

Type: Hall effect sensor

Package: TSOP-16

Features:

High accuracy, low thermal drift

Flexible output options for analog, SENT or SPC output

Support multi-point (up to 32 points) programming to achieve high precision

For digital output, according to ISO 26262 ASIL-C; For analog output, it complies with ISO 26262 ASIL-B

Fully redundant dual-chip TSOP-16 package enables redundancy in safety-critical, high-availability systems

High performance linear Hall effect sensor IC

On-chip signal processing enables reliable and accurate detection

Programmable measuring range

Programmable linear transmission characteristics (multipoint (4 or 8 points) or piecewise linearization (16 or 32 points))

Optional short PWM code (SPC) or analog output mode

SAE J2716 APR2016 SENT

48-bit programmable ID number

Meets AECQ-100 level standard

It can be programmed via the PTC-04 and PTC-04-DB-HALL06 subboards
