(Onsemi) Intelligent Power Module NFAM3065L4BL-IPM SPM31, 650V/30A

(Onsemi) Intelligent Power Module NFAM3065L4BL-IPM SPM31, 650V/30A

Source:our siteTime:2024-09-09Views:

The onsemi NFAM3065L4BL Intelligent Power module is an advanced motion SPM that provides a comprehensive range of high-performance inverter output stages for AC induction, BLDC and PMSM motors.The fully integrated inverter power module includes a sepa…

The onsemi NFAM3065L4BL Intelligent Power module is an advanced motion SPM that provides a comprehensive range of high-performance inverter output stages for AC induction, BLDC and PMSM motors.


The fully integrated inverter power module includes a separate high-side gate driver, LVIC, six IGBTs and a temperature sensor (VTS or thermistor (T)). The six IGBTs use a three-phase bridge configuration to provide independent transmitter connections for the lower phase pins, allowing maximum flexibility in choosing control algorithms. The built-in high-speed HVIC requires only a single supply voltage, and converts the incoming logic level gate input into a high-voltage, high-current drive signal in order to drive the built-in IGBT of the module normally.


Product: NFAM3065L4BL

Voltage: 650V

Current: 30A

Height: 5.6mm

Length: 54.5mm

Operating temperature: -40 °C to + 150°C

Installation style: Through Hole

Package/housing: DIP-39

Package: Tube

Product type: Intelligent Power Modules - IPMs

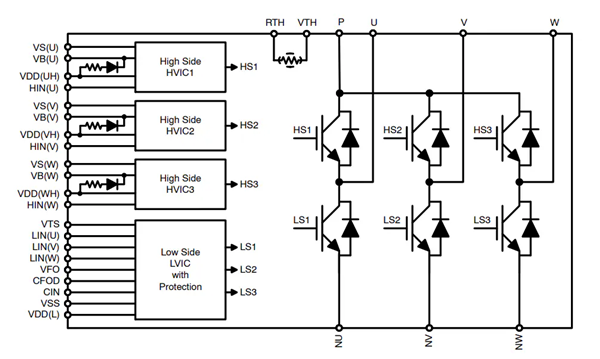

Schematic diagram of NFAM3065L4BL:


Features:

Three-phase 650V, 30A IGBT module with independent driver

Active logic interface

Built-in Undervoltage Protection (UVP)

Integrated bootstrap diode and resistor

Separate low side IGBT transmitter connection for individual current detection of each phase

Temperature sensor (VTS or thermistor (T))

UL: E339285

lead-free


Applications:

Industrial driver

Industrial pump

Industrial fan

Industrial automation
