Microchip (RNG90-SSVDA-T) RNG90: for systems requiring a secure random number generator

Microchip (RNG90-SSVDA-T) RNG90: for systems requiring a secure random number generator

Source:our siteTime:2024-09-06Views:

Microchip Technology RNG90 CryptoAuthentication™ devices are designed for use in systems that require a secure random number generator. The RNG90 is ready-to-use and requires no customization. Microchip RNG90 uses the industry standard I2C interface.…

Microchip Technology RNG90 CryptoAuthentication™ devices are designed for use in systems that require a secure random number generator. The RNG90 is ready-to-use and requires no customization. Microchip RNG90 uses the industry standard I2C interface. Microchip's CryptoAuthentication library (CAL) provides software support that can be easily adjusted via a hardware abstraction layer (HAL) for use with most microcontrollers and microprocessors.

Related products:

RNG90-SSVDA-T

RNG90-MAVDA-T


Features:

Internal High quality NIST SP 800-90A/B/C Random Number Generator (RNG)

FIPS compliant health tests and entropy self-tests

Designed for FIPS140-3 NIST CMVP Entropy Source Validation (ESV) compliance

72-digit unique serial number

400kHz fast mode I2C interface

Nominal sleep current: 130nA

Operating voltage range: 1.65V to 5.5V VCC

Extended industrial temperature range: −40°C to +105°C

Human Body Model (HBM) ESD: 4kV

Extensive security measures

Active shielding to prevent intrusion attacks

Low and high supply voltage tampering

Low and high temperature tampering

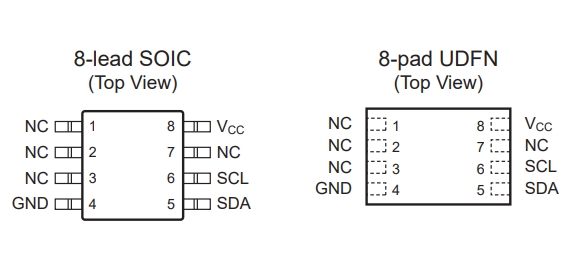

Encapsulation option

2mm x 3mm 8 Pad UDFN

8-pin SOIC

Applications:

Encryption operation

Password generation

Game system

cryptocurrency

Scientific application

Aerospace and defense applications
