Supply Power Splitter Mini-Circuits SCW Series 2-Way -0 ° SCW-2-482 3300 to 4800 MHz

Supply Power Splitter Mini-Circuits SCW Series 2-Way -0 ° SCW-2-482 3300 to 4800 MHz

Source:our siteTime:2024-08-31Views:

The SCW-2-482 is a power splitter that offers industry-leading combined operating performance and size. The excellent phase and amplitude imbalances make the device a common building block for a variety of system and subsystem designs.SpecificationsSC…

The SCW-2-482 is a power splitter that offers industry-leading combined operating performance and size. The excellent phase and amplitude imbalances make the device a common building block for a variety of system and subsystem designs.


Specifications

SCW-2-482:

Frequency range: 3300MHz to 4800MHz

The typical average insertion loss is 0.7dB(higher than 3.0dB) with a maximum of 1dB

The minimum isolation is 12dB, with a typical value of 15dB

2° Typical phase unbalance, Max. 6°

0.2dB Typical amplitude imbalance, maximum 0.5dB

Input return loss: 13dB

Input power (as separator) : Max. 2W


Instructions:

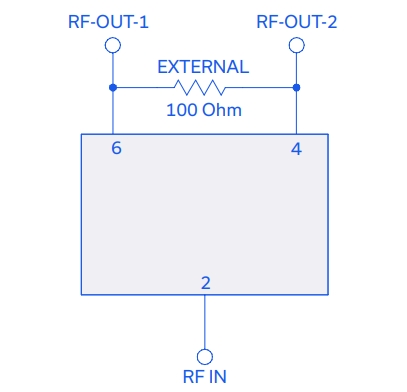

Mini-Circuits 2-Way-0 ceramic power divider/synthesizer in a compact design (1.6mm x 0.8mm package) with 50 ohm impedance and 2W maximum input power (as a divider). These devices have a frequency range of 2400MHz to 7200MHz in the temperature range of -55°C to +125°C, with excellent phase and amplitude imbalance performance. Mini-Circuits SCW components are manufactured with temperature-stable LTCC technology and are ideal for WLAN, LTE, 5G sub 6GHz and cellular communications (depending on the model).


Related products:

SCW-2-482

SCW-2-332

SCW-2-722


Applications:

• WLAN

• 5G sub 6GHz

• Cellular communication

• LTE
