The CMD328K3 is a low noise amplifier, 6GHz to 18 GHz, 16QFN

The CMD328K3 is a low noise amplifier, 6GHz to 18 GHz, 16QFN

Source:our siteTime:2024-08-23Views:

Description:The Qorvo CMD328K3 6-18GHz low noise amplifier is a wideband MMIC low noise amplifier in a leadless 3mm x 3mm plastic surface mount air chamber package. This device is ideal for EW and communication systems that require small size and low …

Description:

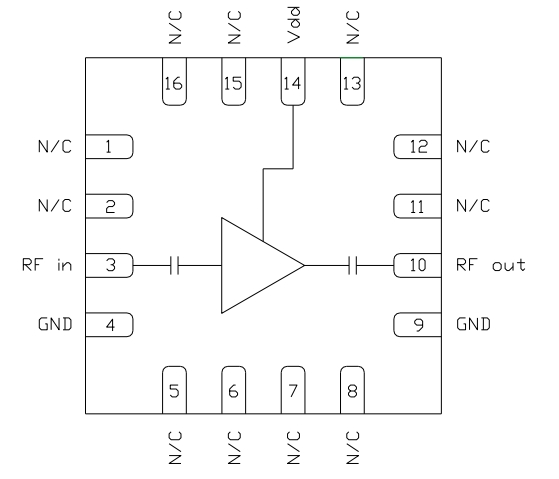

The Qorvo CMD328K3 6-18GHz low noise amplifier is a wideband MMIC low noise amplifier in a leadless 3mm x 3mm plastic surface mount air chamber package. This device is ideal for EW and communication systems that require small size and low power consumption. The gain of the wideband device is greater than 27dB, the corresponding output 1dB compression point is +12dBm, and the noise figure is 1.4dB. The CMD328K3 uses a 50-ω matching design, which does not require an external DC module to match an RF port. The Qorvo CMD328K3 amplifier is the perfect alternative to high cost hybrid amplifiers.


Specification

CMD328K3:

Frequency range: 6GHz to 18GHz

Gain: 27dB

Noise factor: 1.5dB

Output P1dB: 12dBm

Output IP3:24dBm

Input voltage range: 3V

Current: 52mA


Features

Ultra-low noise figure

High gain broadband performance

Single supply voltage: +3.0V (52mA)

RoHS compliant lead-free 3mm x 3mm QFN package


Applications

X-band radar

Ku-band radar

Satellite communication

EW receiver
