Melexis New and Original MLX90374GDC-ABB-200-RE Board Interface Motion and Position Sensors

Melexis New and Original MLX90374GDC-ABB-200-RE Board Interface Motion and Position Sensors

Source:our siteTime:2024-08-22Views:

Introduction:The MLX90374 is a monolithic magnetic position processor integrated circuit. It consists of a Triaxis Hall magnetic front end, an analogue-to-digital signal conditioner, a DSP for advanced signal processing, and a dual output stage driver…

Introduction:

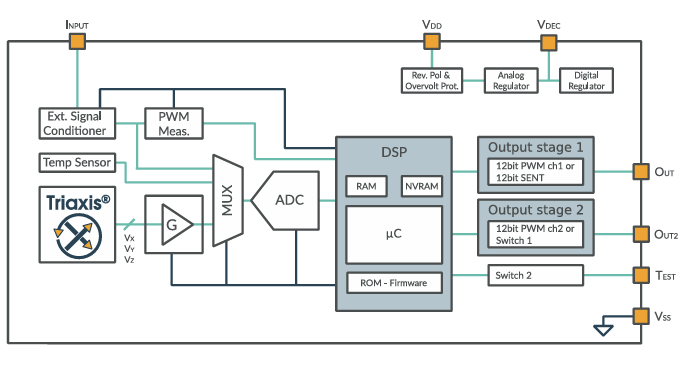

The MLX90374 is a monolithic magnetic position processor integrated circuit. It consists of a Triaxis® Hall magnetic front end, an analogue-to-digital signal conditioner, a DSP for advanced signal processing, and a dual output stage driver.The MLX90374 is very sensitive to the three components of the magnetic flux density (i.e., Bx, By, and Bz) that are applied to the integrated circuit.


This allows the MLX90374 to decode the absolute position of any moving magnet (e.g., 0 to 360 degree rotational position or linear displacement, see Figure 2) through the correct magnetic circuit. This makes it possible to design non-contact position sensors that are often required in automotive and industrial applications.


Shenzhen Mingjiada Electronics Co.,Ltd.New and Original Sale Melexis MLX90374GDC-ABB-200-RE Board Interface Motion and Position Sensors


Product Specification

Manufacturer: Melexis

Product Category: Board Interface Motion and Position Sensors

Product: Position Sensors

Output Type: SENT

Operating supply current: 10.5 mA

Supply voltage - min: 4.5 V

Supply voltage - max: 5.5 V

Maximum operating temperature: + 160 C

Minimum operating temperature: - 40 C

Package / Case: SOIC-8

Mounting style: SMD/SMT

Measuring Instrument: Position

Humidity sensitivity: Yes

Operating angle: 360 deg

Output current: 15 mA

Product Type: Board Mount Motion & Position Sensors

Series: MLX90374

Factory Package Quantity: 3000

Sub Category: Sensors


If you are interested, please contact Mr Chen by phone:

Tel: +86 13410018555

Email: sales@hkmjd.com

Company Homepage: http://www.hkmjd.com/
