MCF8329A1IREER FOC 3-Phase BLDC Gate Driver-Texas Instruments

MCF8329A1IREER FOC 3-Phase BLDC Gate Driver-Texas Instruments

Source:our siteTime:2024-08-21Views:

Description:The MCF8329A1IREER FOC three-phase BLDC gate driver provides a single-chip, code-free, senorless FOC solution for applications that drive brushless direct current motors (BLDC) or Permanent magnet synchronous motors (PMSM). The MCF8329A of…

Description:

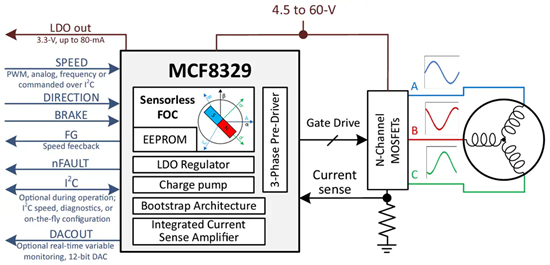

The MCF8329A1IREER FOC three-phase BLDC gate driver provides a single-chip, code-free, senorless FOC solution for applications that drive brushless direct current motors (BLDC) or Permanent magnet synchronous motors (PMSM). The MCF8329A offers three half-bridge gate drivers. Each is capable of driving both high - and low-side n-channel power MOSFETs. The device uses a bootstrap circuit to generate the correct gate drive voltage through an internal charge pump. This feature enhances the high-side MOSFETs. Includes a trickle charge pump that supports 100% duty cycle. The MCF8329A supports a wide input power range from 4.5V to 60V and can operate on a single power supply.


The algorithm configuration can be stored in a non-volatile EEPROM and the device can operate independently after configuration. Detect motor current using an integrated current detection amplifier that supports a single external shunt resistor. The MCF8329A integrates a number of protection features to protect equipment, systems and motors from failure events.


Detailed parameter

Product name: MCF8329A1IREER

Products: Brushless DC Motor Drivers

Type: 3 Phase BLDC

Working power supply voltage: 4.5V to 60V

Output current: 1 A, 2 A

Working power supply current: 28 mA

Minimum operating temperature: -40 C

Max. operating temperature: + 125 C

Installation style: SMD/SMT

Package/box: WQFN-36

Trademark: Texas Instruments


Applications

• Brushless direct current (BLDC) motor module

• Cordless vacuum cleaner

• Washing machine and dishwasher pumps

• Electrical fans and pumps

• Wireless gardening and power tools, lawn mowers
