Texas Instruments BQ77216: Voltage and temperature protectors with internal delay timer for 3-16 series Li-ion batteries.

Product details

The BQ77216 product family offers a variety of voltage and temperature monitoring capabilities, including over voltage (OVP), under voltage (UVP), open circuit (OW) and over heat (OT) protection for lithium-ion battery pack systems. Each battery can be independently monitored for overvoltage, undervoltage and open circuit conditions. By adding an external NTC thermistor, the device can detect overheating.

The BQ77216 device activates an internal delay timer when overvoltage, undervoltage, open circuit, or overheating conditions are detected. When the delay timer expires, the corresponding output is triggered to enter its working state (high or low, depending on the configuration).

Related model:

BQ7721614PWR

BQ7721611PWR

BQ7721609PWR

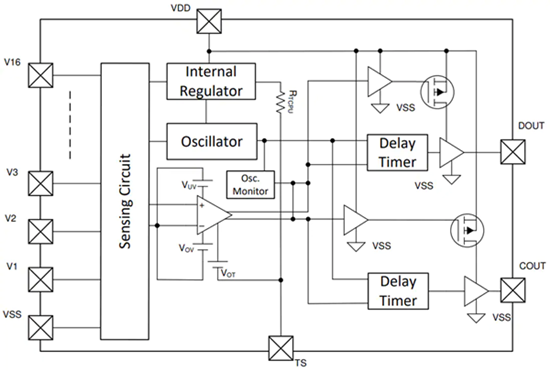

Functional block diagram

Features

• 3 to 16 series battery protection

• High precision overvoltage protection

± 10mV at -25 °C

± 20mV from 0°C to 60°C

• Overvoltage protection options from 3.55V to 5.1V

• Undervoltage protection options from 1.0V to 3.5V

• Open connection detection

• Overheat protection

• Support random battery connection

• Functional safety

• Fixed internal delay timer

• Fixed the detection threshold

• Fixed output driver type for each COUT and DOUT

- The high or low level is valid

- High level active drive up to 6V

- Open drain, can be pulled externally to VDD

• Low power consumption ICC ≈ 1µA(VCELL(ALL) < VOV)

• Each battery input has a low leakage current of less than 100nA, and open circuit detection is disabled

• Package size options:

- 24-pin lead type TSSOP with lead spacing of 0.65mm

Applications

• Lithium-ion battery pack protection, can be applied to:

- Gardening tools in hand

- Hand held power tools

- Cordless vacuum cleaner

- UPS backup battery

- Light electric vehicles (electric bicycles, electric scooters, pedal assisted bicycles)
