Supply [Microchip] LAN8671C2T-E/U3B High-Performance 10BASE-T1S Ethernet PHY Transceiver

Supply [Microchip] LAN8671C2T-E/U3B High-Performance 10BASE-T1S Ethernet PHY Transceiver

Source:our siteTime:2024-07-09Views:

Shenzhen Mingjiada Electronics Co., Ltd. Supply [Microchip] LAN8671C2T-E/U3B High-Performance 10BASE-T1S Ethernet PHY TransceiverType: TransceiverProtocol: EthernetNumber of Drivers/Receivers: 1/1Duplex: Full, HalfReceiver Hysteresis: 230 mVData Rate:…

Shenzhen Mingjiada Electronics Co., Ltd. Supply [Microchip] LAN8671C2T-E/U3B High-Performance 10BASE-T1S Ethernet PHY Transceiver

Type: Transceiver

Protocol: Ethernet

Number of Drivers/Receivers: 1/1

Duplex: Full, Half

Receiver Hysteresis: 230 mV

Data Rate: 10Mbps

Voltage - Supply: 3.135V ~ 3.465V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount, Wettable Flank

Package / Case: 24-VFQFN Exposed Pad

Supplier Device Package: 24-VQFN (4x4)


LAN8671C2T-E/U3B - Product Description:

LAN8671C2T-E/U3B is a high-performance 10BASE-T1S single-pair Ethernet PHY transceiver for 10 Mbit/s halfduplex networking over a single pair of conductors. Utilizing standard Ethernet technology in sensor/ actuator networks reduces application costs by eliminating gateways necessary with legacy networking technologies. The ability to connect multiple PHYs onto a common mixing segment further saves implementation costs by reducing cabling and switch ports.

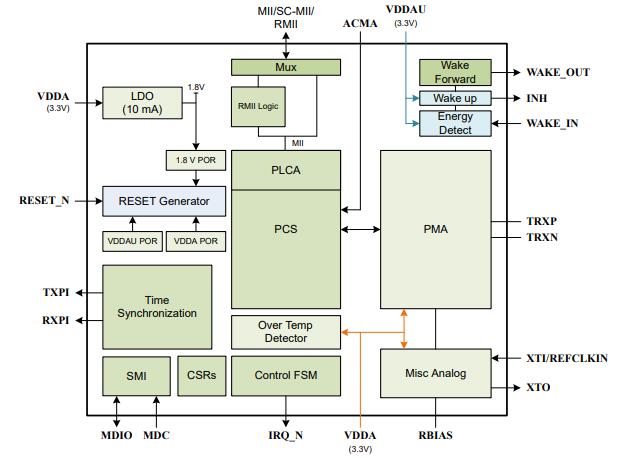

LAN8671C2T-E/U3B - Internal Block Diagram:



LAN8671C2T-E/U3B - Target Applications:

In-vehicle networking and automotive zonal architecture

Sensor/actuator networks

Industrial control cabinets and machine control

Building automation

LED lighting
