Supply, Recycle [NXP Bluetooth Wireless MCU] KW45Z41052AFPBR Bluetooth Low Energy 5.3 Wireless MCU

Supply, Recycle [NXP Bluetooth Wireless MCU] KW45Z41052AFPBR Bluetooth Low Energy 5.3 Wireless MCU

Source:our siteTime:2024-06-29Views:

Shenzhen Mingjiada Electronics Co., Ltd. Supply, Recycle [NXP Bluetooth Wireless MCU] KW45Z41052AFPBR Bluetooth Low Energy 5.3 Wireless MCUProduct OverviewsKW45Z41052AFPBR is highly secure, bluetooth low energy 5.3 wireless MCU with CAN FD. It integra…

Shenzhen Mingjiada Electronics Co., Ltd. Supply, Recycle [NXP Bluetooth Wireless MCU] KW45Z41052AFPBR Bluetooth Low Energy 5.3 Wireless MCU


Product Overviews

KW45Z41052AFPBR is highly secure, bluetooth low energy 5.3 wireless MCU with CAN FD. It integrates a high performance Bluetooth Low Energy version 5.3 radio and CAN FD for Automotive and Industrial applications. For automotive applications, an integrated FlexCAN supporting CAN and CAN FD compliant with the ISO 11898-1 standard. The on-chip, low-power UARTs have LIN capabilities.


Application Core:

Up to 96 MHz Arm Cortex®-M33 core

Up to 1 MB flash memory

128 KB SRAM

TrustZone-M, IEEE 754 FPU, DSP, MPU, NVIC, SysTick

8 KB Code Cache to improve performance and efficiency

Secure Boot ROM


Bluetooth Low Energy radio core

• Dedicated CM3 core running at up to 64 MHz

• 256 kB Flash supporting upgradable software radio

• 88 KB SRAM optimized for link layer support

• Up to 24 simultaneous connections

• Programmable Transmit Output Power up to +10 dBm

• Data Rates: 125 kbps, 500 kbps, 1 Mbps, and 2 Mbps

• Modulation Types: 2 Level FSK, GFSK, MSK, GMSK

• Integrated memories in radio containing Bluetooth LE Controller Stack and radio drivers

• On-chip balun with single ended bidirectional RF port

• Low external component counts for low cost, small formfactor designs

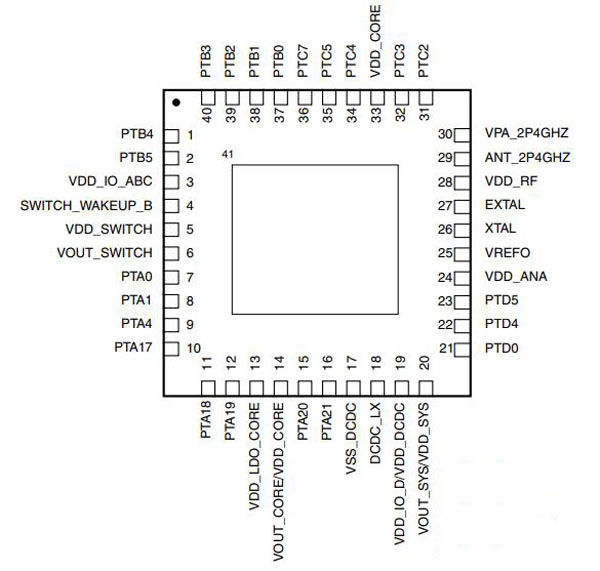

KW45Z41052AFPBR - 40-pin HVQFN Package Pinout Diagram:



If you have a requirement, please call Mr. Chen for advice at:

Tel: +86 13410018555

E-mail: sales@hkmjd.com

Home page URL: www.hkmjd.com

Supply, Recycle [NXP] KW45B41Z52AFPBR Bluetooth Low Energy 5.3 Wireless MCU With CAN FD Return to
