[Supply] LT3471EDD (ADI) 1.3A, 1.2MHz, Dual-Channel Boost/Inverter Converter

Product Overview:

The LT3471EDD is a dual-channel switching regulator that combines two 42V, 1.3A switches with an error amplifier capable of ground-level sensing, thereby providing both boost and negative output conversion functionality. Employing a constant-frequency current-mode PWM architecture, the LT3471EDD generates predictable low output noise that is easily filtered. Its 1.2MHz switching frequency permits the use of compact, low-cost, low-profile inductors and capacitors. The LT3471EDD is available in a 10-DFN (3mm x 3mm) package.

LT3471EDD – 1.3A, 1.2MHz Boost/Negative Output Converter, Product Details:

Part Number: LT3471EDD

Package: DFN-10

Type: Boost Converter

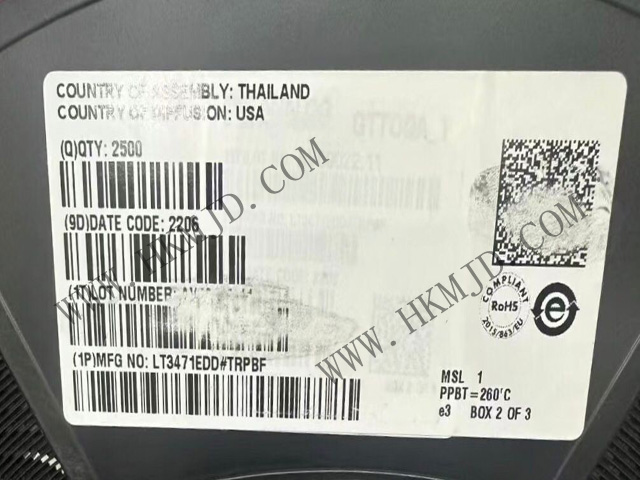

LT3471EDD — Product Image:

LT3471EDD Specifications:

Function: Boost, Boost/Buck

Output Configuration: Positive and Negative (Dual Rail)

Topology: Boost, Cuk, Flyback, SEPIC

Output Type: Adjustable

Number of Outputs: 2

Voltage - Input (Min): 2.1V

Voltage - Input (Max): 16V

Voltage - Output (Min/Fixed): ±1V

Voltage - Output (Max): ±40V

Current - Output: 1.3A

Frequency - Switching: 1.2MHz

Synchronous Rectifier: None

Operating Temperature: -40°C to 85°C

Mounting Type: Surface Mount

Package/Case: 10-WFDFN Bare Pad

Supplier Device Package: 10-DFN (3x3)

LT3471EDD Applications:

Organic LED Power Supply

Digital Cameras

White LED Power Supply

Cellular Telephones

Medical Diagnostic Equipment

On-board ±5V or ±12V Power Supply

TFT-LCD Bias Power Supply

xDSL Power Supply

【Mingjiada Electronics】Stocking ADI (LT3471EDD) Dual-Channel Boost/Buck Converter. We hope the above information assists you in better understanding the LT3471EDD chip. For product pricing enquiries, please contact Mingjiada Electronics:
