[Supply TI Converters] Original TPS62161DSGR Synchronous Step Down DC DC Converter

[Supply TI Converters] Original TPS62161DSGR Synchronous Step Down DC DC Converter

Source:our siteTime:2025-08-21Views:

[Supply TI Converters] Original TPS62161DSGR Synchronous Step Down DC DC ConverterShenzhen Mingjiada Electronics Co., Ltd. — In-stock supply of TI (TPS62161DSGR) 3V to 17V, 1A buck converter with DCS-Control™. Product Details: Model: TPS62161DSGR …

[Supply TI Converters] Original TPS62161DSGR Synchronous Step Down DC DC Converter


Shenzhen Mingjiada Electronics Co., Ltd. — In-stock supply of TI (TPS62161DSGR) 3V to 17V, 1A buck converter with DCS-Control™.


Product Details:

Model: TPS62161DSGR

Package: WSON-8

Type: Buck Converter

TPS62161DSGR — Product Image:

TPS62161DSGR 老.jpg

The TPS62161DSGR is a simple-to-use synchronous buck DC-DC converter optimised for high-power-density applications. The TPS62161DSGR features a typical switching frequency of up to 2.25MHz, enabling the use of small inductors, and delivers fast transient response and high-precision output voltage through the use of DCS-Control™ topology technology.


TPS62161DSGR Product Features:

DCS-Control™ topology technology

Input voltage range: 3V to 17V

Output current up to 1A

Adjustable output voltage range: 0.9V to 6V

Fixed output voltage version

Seamless power-saving mode transition

Typical quiescent current: 17µA

Normal power supply output

100% duty cycle mode

Short-circuit protection

Over-temperature protection

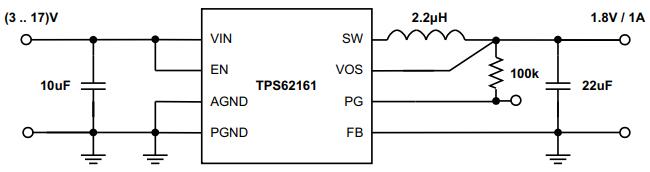

TPS62161DSGR — Typical Application Circuit Diagram:



【Mingjiada Electronics】has been supplying TI (TPS62161DSGR) synchronous buck converters for a long time. For more information about the TPS62161DSGR product or to inquire about pricing, please contact Mingjiada Electronics:

QQ: 1668527835

Phone: 13410018555

Email: chen13410018555@163.com

Homepage URL: www.hkmjd.com
