IIS2DULPXTR is an industrial-grade three-axis accelerometer launched by STMicroelectronics, mainly targeting maintenance-free intelligent sensing applications. The following are its core features:

A 3-axis accelerometer with digital output

Programmable range: ±2g/±4g/±8g/±16g

Output data rate: 1.6Hz to 800Hz; The bandwidth is up to 400 Hz

High-speed I²C/SPI/MIPI I3C® digital output interface

Ultra-low supply current and low noise (as low as 220 μg/√Hz)

Four working modes

High-performance (HP) mode with anti-aliasing filter: 9.3 μA

Low-power (LP) mode with anti-aliasing filter: 6.5 μA

Ultra-low power (ULP) mode: 3 μA

Single-trigger mode

Embedded Machine Learning Kernel (MLC

Programmable Finite State Machine (FSM

Adaptive Self-configuration (ASC) Based on sensor processing output (FSM/MLC)

Embedded digital functions (free fall, wake-up, single/double/triple hit recognition, activity/rest, 6D/4D direction recognition, advanced pedometer, step count detector and pedometer, large motion detection, tilt detection)

Embedded FIFO: Up to 128 samples of acceleration and temperature data (or analog hub /Qvar data); At low resolution, up to 256 acceleration data samples are available

External clock input to achieve perfect synchronization with multiple sensors or controllers

Integrated analog hub /Qvar sensing channel

Embedded temperature sensor

Wider operating temperature range: -40 °C to +105 °C

Power supply voltage range: 1.62V to 3.6V

Independent I/O power supply (1.62V - 3.6V), oriented towards I²C and SPI interfaces

Independent I/O power supply (extended voltage range: 1.08V - 3.6V), for MIPI I3C® interface

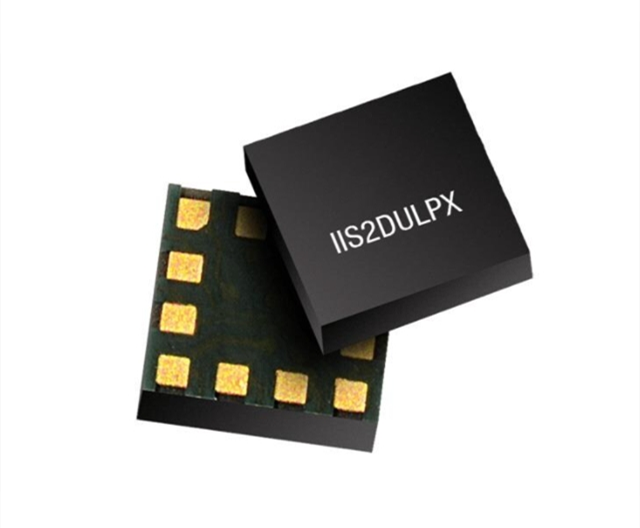

Miniaturized package: 2.0x 2.0x 0.74 (maximum) mm LGA 12 leads

High seismic resistance of 10,000g

Complies with ECOPACK and RoHS standards

Description

IIS2DULPXTR is an intelligent digital triaxial linear accelerometer. Its MEMS and ASIC are specifically designed for industrial applications, combining extremely low supply current with multiple advanced features, including normally open anti-aliasing filtering, finite state machine (FSM), and a machine learning core (MLC) with adaptive self-configuration (ASC). And analog hub /Qvar sensing channels.

FSM and MLC with ASC provide excellent edge processing capabilities that are always available for IIS2DULPXTR, while the analog hub /Qvar sensing channel defines a new height of system optimization. The complete set of functions implemented by IIS2DULPXTR's MIPI I3C® target interface and embedded 128-level FIFO buffer makes it a benchmark for system integration in terms of bill of materials, processing power and power consumption.

The IIS2DULPXTR accelerometer offers user-selectable ranges of ±2g/±4g/±8g/±16g and can measure acceleration at output data rates ranging from 1.6Hz to 800Hz.

The IIS2DULPXTR features a dedicated internal engine for handling motion and acceleration detection, including free fall, wake, single/double/triple hit recognition, activity/rest, and 6D/4D direction recognition.

The IIS2DULPXTR adopts a thin and small plastic pad grid array (LGA) package, ensuring normal operation within a wider temperature range (-40 °C to +105 °C).

The target application scenarios of the IIS2DULPXTR accelerometer

Industrial IoT and factory automation

Asset tracking

Portable healthcare devices and hearing AIDS

Tamper-proof equipment

Wireless sensor node

Electrical appliances and robots

Exercise activation function

Please visit the official website of Mingjiada (www.hkmjd.com) to check the real-time inventory of IIS2DULPXTR.
