8V97051LNLGI is a high-performance wideband RF synthesizer /PLL chip launched by (Renesas), with the following main features:

Dual-differential output

Output frequency range: 34.375MHz to 4400MHz (continuous range)

The RF output is divided by 1, 2, 4, 8, 16, 32, 64

Open-drain output

Fractional n-synthesizer (also supports Integer-N mode)

16-bit integer and 12-bit decimal (16-bit decimal when using extension registers)

3-wire or 4-wire SPI interface (compatible with 3.3V and 1.8V)

3.3V single power supply

Logical compatibility: 1.8V

Integrated high-performance low-dropout regulators (Ldos) can achieve excellent power supply noise suppression

Programmable output power level: -4 DBM to 7dBm

Silent function

Ultra-low PN of 1.1GHz LO: -143 DBC /Hz at 1MHz offset (typical value)

Lock detection indicator light

Input reference frequency: 5MHz to 310MHz

Power consumption: 380mW (typical value) (RF_OUTB disabled)

5mm × 5mm 32-VFQFN package

Automatic VCO frequency band selection (automatic calibration function)

Ambient operating temperature: -40 °C to 85 °C

Supports operation with a shell temperature of no more than 105 °C

Product Details

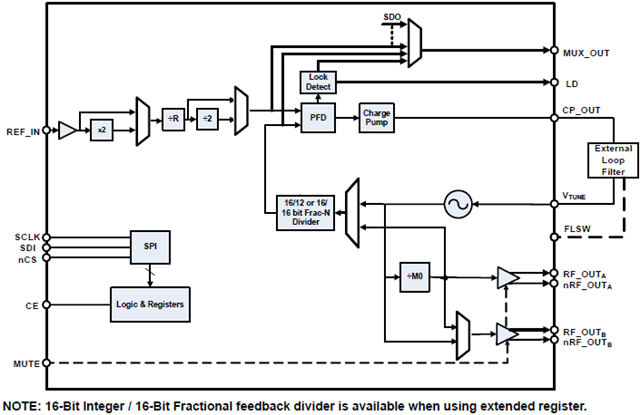

The 8V97051LNLGI is a high-performance wideband RF synthesizer /PLL that has been optimized to be used as a local oscillator (LO) in multi-carrier, multi-mode FDD and TDD base station radio cards. The 8V97051LNLGI is available in a compact 5mm × 5mm 32-VFQFN package.

The 8V97051LNLGI wideband RF synthesizer /PLL offers a default decimal mode and can be optionally used in conjunction with an integer mode. It requires an external loop filter.

The 8V97051LNLGI integrated voltage-controlled oscillator (VCO) supports output frequencies ranging from 34.375MHz to 4400MHz and maintains outstanding phase noise and spurry performance.

The RF_OUT[A: B] output driver has an independently programmable output power ranging from -4 DBM to 7dBm. The RF_OUT output can be muted. The mute function can be accessed via SPI commands or the mute pin.

Application field

8V97051LNLGI is widely used in the following wireless communication fields:

Wireless infrastructure

Testing equipment

Cable television equipment

Military and aerospace

Wireless Local Area Network

Clock generation

Basic parameters

Product: 8V97051LNLGI

PLL: Yes

Input: LVCMOS

Output: LVCMOS

Number of circuits: 1

Ratio - Input: Output: 1:2

Differential - Input: Output: None/Yes

Frequency - Maximum: 4.4GHz

Frequency divider/frequency doubler: Yes/No

Voltage - Power supply: 3.135V to 3.465V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Package/Housing: 32-VFQFN
