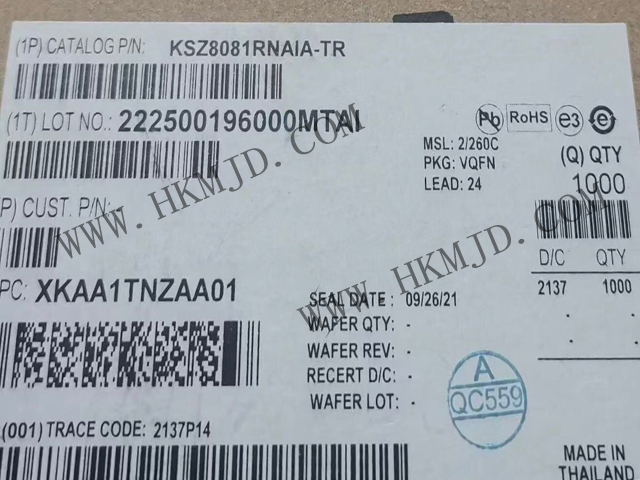

[Supply] KSZ8081RNAIA (Microchip) Single Chip 10/100 Base-T/TX Ethernet PHY Transceiver

Shenzhen Mingjiada Electronics Co., Ltd.——Long-term supply of Microchip KSZ8081RNAIA: High-performance, Low-power 10/100 Base-T/TX Ethernet PHY Transceiver

Product Overview

The KSZ8081RNAIA is a highly integrated, single-port 10/100 Mbps Ethernet physical layer transceiver (PHY) from Microchip Technology. The KSZ8081RNAIA features an advanced, low-power design and supports the IEEE 802.3 standard, making it ideal for a wide range of applications such as industrial control, consumer electronics, IoT devices, and embedded networking systems. The KSZ8081RNAIA's excellent EMI/EMC performance and industrial-grade temperature range (-40°C to +85°C) make it ideal for harsh environment applications.

KSZ8081RNAIA Key Features and Benefits:

1. High-Performance Network Connectivity

The KSZ8081RNAIA supports 10BASE-T and 100BASE-TX Ethernet standards;

Integrated adaptive equaliser, echo cancellation, and clock recovery ensure signal integrity;

IEEE 802.3az Energy Efficient Ethernet (EEE) compliant with significant reduction in power consumption during idle time. IEEE 802.3az Energy Efficient Ethernet (EEE) compliant, significantly reducing power consumption when idle.

2. Low Power Design

Operates at 78mW (100Mbps mode);

Supports Power-Down Mode with standby current < 10μA;

EEE mode further reduces power consumption by up to 50%. 3.

3. Interface Flexibility

KSZ8081RNAIA provides RMII (Reduced Media Independent Interface) interface, which simplifies the connection with mainstream MAC controllers (e.g. ARM Cortex-M series);

supports Auto-MDIX function, which automatically recognises direct or crossover cables without user intervention.

4. High Reliability and Immunity

Built-in ESD protection (±8kV HBM) for enhanced system robustness;

Excellent EMI/EMC performance, compliant with FCC, EN55022, etc.;

Industrial temperature range: -40°C to +85°C.

5. Simplified Design

Single 3.3V power supply;

Integrated termination resistors to reduce external components;

Small 32-pin QFN (5×5 mm) package to reduce the need for external components; Small 32-pin QFN (5×5 mm) package to reduce the need for external components. Small 32-pin QFN (5 × 5 mm) package saves PCB space.

Typical application scenarios for the KSZ8081RNAIA:

Industrial automation: PLC, HMI, industrial gateways

Internet of Things devices: smart home controllers, sensor gateways

Consumer electronics: network printers, IP cameras, set-top boxes

Embedded systems: ARM/RISC-V based embedded motherboards

In-vehicle and communication devices: in-vehicle infotainment systems, router modules

The Microchip KSZ8081RNAIA is the benchmark solution for embedded Ethernet connectivity due to its low power consumption, high reliability, small form factor package, and industrial-grade temperature support. Whether it is an industrial IoT gateway, a smart device, or a control unit in harsh environments, this KSZ8081RNAIA PHY chip provides stable and efficient network performance.

[Mingjiada Electronics] Long-term supply of KSZ8081RNAIA, for Ethernet PHYs KSZ8081RNAIA datasheets, specification information or to inquire about pricing, welcome to contact Mingjiada Electronics:
