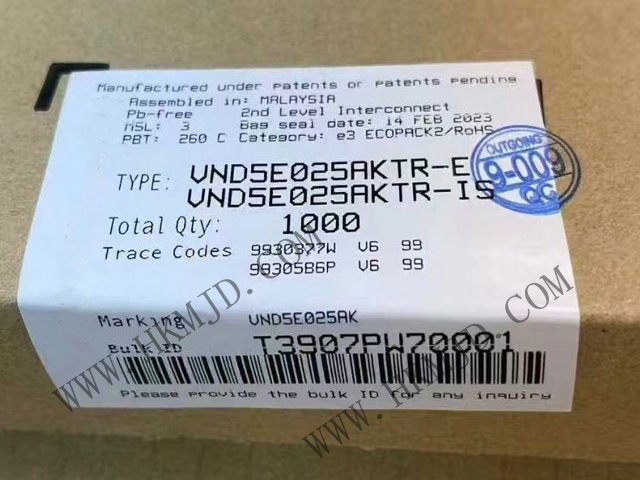

Shenzhen Mingjiada Electronics Co., Ltd. is now supplying STMicroelectronics' automotive high-side switch VND5E025AKTR-E.

Product Overview

The VND5E025AKTR-E is an automotive-grade dual-channel high-side driver housed in a PowerSSO-24 package, incorporating VIPower™ M0-5 technology, specifically designed for 12V automotive electronic systems. The device supports analog current sensing and features a high drive capability of 43A, making it suitable for applications such as body control, LED driving, and motor control, while meeting the stringent requirements of automotive electronic environments.

Product Features

High-side driver design: Suitable for 12V automotive ground-connected loads, providing protection and diagnostic functions.

Analogue current sensing: Each output channel is equipped with a dedicated analogue current sensing pin, supporting fast overload and short-circuit detection.

Advanced protection features:

Load current limiting.

Surge and overload active management.

Over-temperature shutdown with automatic restart.

Over-voltage active clamping.

Low on-resistance: Maximum on-resistance of 25 milliohms ensures high efficiency.

High compatibility: Compatible with 3V and 5V CMOS microcontrollers, easy to integrate.

Compact packaging: Uses PowerSSO-24 packaging to save space.

Operating temperature range: -40°C to 150°C, suitable for automotive environments.

Product specifications

Model: VND5E025AKTR-E

Package: PowerSSO-24

Input voltage range: 4.5V to 28V

Output current (per channel): 43A (maximum)

On-resistance: 25mΩ (typical)

Switching delay: On 20μs / Off 40μs

Operating temperature: -40°C to +150°C

Interface compatibility: 3V/5V CMOS input, compatible with MCU control

The VND5E025AKTR-E is widely used in the automotive field, including:

Junction box: For centralised management and distribution of power.

Internal/external lighting: controlling headlights and other lighting equipment.

DC motor drive: such as electric seats, window lifts, etc.

Body electronic systems: such as windscreen wipers, air conditioning, etc.

Supply advantages

🔹 100% genuine original products: genuine factory products, quality assurance, ensuring device reliability.

🔹 Ample stock on hand: supports small-batch samples (minimum order of 1 piece) and large-volume purchases.

🔹 Fast delivery: same-day shipping for in-stock items, global logistics support via DHL/UPS/FedEx.
