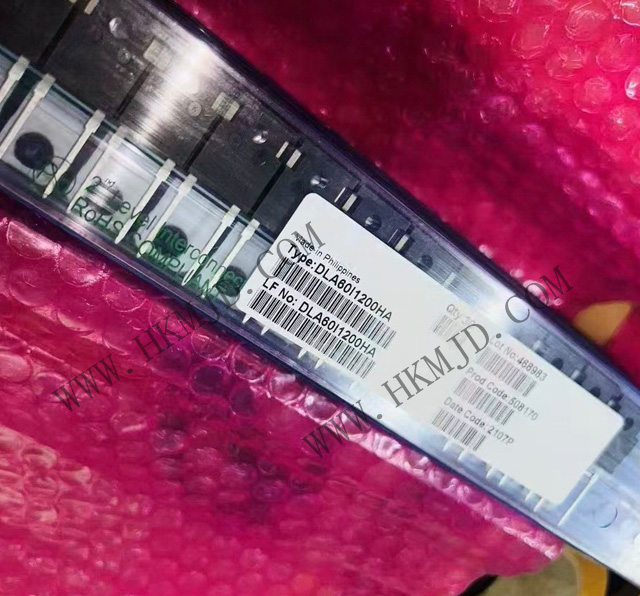

Mingjiada Electronics Supply IXYS DLA60I1200HA - 1200V/60A High-Performance Standard Rectifier
Shenzhen Mingjiada Electronics Co., Ltd. offers long-term stock availability of the IXYS DLA60I1200HA—a 1200V/60A standard recovery rectifier diode in a TO-247-2 (TO-247AD) through-hole package, suitable for high-power rectification, industrial power…
Shenzhen Mingjiada Electronics Co., Ltd. offers long-term stock availability of the IXYS DLA60I1200HA—a 1200V/60A standard recovery rectifier diode in a TO-247-2 (TO-247AD) through-hole package, suitable for high-power rectification, industrial power supplies, motor drives, solar inverters, and electric vehicle charging stations. This device features a low forward voltage drop and high surge current capability, significantly enhancing system efficiency and reliability.
1. DLA60I1200HA Product Description
The DLA60I1200HA is a general-purpose power rectifier diode using silicon-based standard recovery technology, suitable for power frequency rectification and medium-speed switching applications. Its core advantages include:
High voltage/current capability: 1200V reverse voltage rating (Vr), 60A average rectification current (Io), and 725A surge current (Ifsm).
Low conduction loss: Forward voltage drop of only 1.19V @ 60A, reducing power loss and improving energy efficiency.
Wide temperature operating range: Junction temperature (Tj) supports -55°C to +175°C, suitable for harsh industrial environments.
High-reliability packaging: TO-247AD through-hole packaging with optimised heat dissipation design, suitable for high-power applications.
2. DLA60I1200HA Key Parameters
Reverse voltage (Vr): 1200V
Average rectified current (Io): 60A
Forward voltage drop (Vf): 1.19V @ 60A
Surge current (Ifsm): 725A (short-term withstand)
Reverse leakage current (Ir): 30μA @ 1200V
Recovery time (trr): >500ns (standard recovery)
Package: TO-247-2 (TO-247AD)
Operating temperature: -55°C to +175°C
3. Typical Applications
Industrial power supplies: AC/DC converters, high-current rectifier modules.
Renewable energy: solar inverters, wind power converters.
Motor drives: servo controllers, industrial variable frequency drives.
Electric vehicle charging stations: PFC (power factor correction) circuits.
For inquiries about purchasing the DLA60I1200HA, please contact Mingjiada Electronics!
