The AP0202AT2L00XPGA0-DR is an image signal processor designed for automotive and supports up to 2-megapixel sensor ‌. It provides parallel and OpenLDI output interfaces that work with onsemi 's AR0230AT, AR0132AT, AR0140AT and AR0136AT high dynamic range (HDR) automotive sensors, especially for digital surround view cameras ‌.

Its main characteristics

• Supports up to 2.0MP (1920x1080) ON Semiconductor sensor

It is 1080 fps at 30p, 1.2 fps at 45Mp, and 720 fps at 60p (optimized for HDR sensors).

• Color and gray-scale coefficient correction

• Automatic exposure, automatic white balance, 50/60 Hz automatic flicker detection and avoidance

Adaptive Local Tone Mapping (ALTM)

Two-wire Serial Programming Interface (CCIS)

Parallel output

It can be configured through low-cost SPI flash memory and EEPROM devices

• Advanced Host command interface

• Support independent work

Up to 7 GPIOs

Fail-safe IO

• Multi-camera synchronization support

Overview

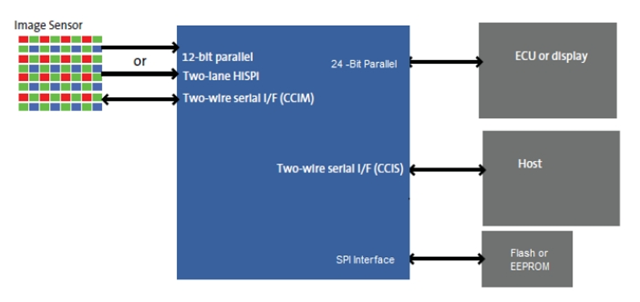

The AP0202AT2L00XPGA0-DR is a dedicated automotive image coprocessor that enables a flexible camera platform using ON Semiconductor's megapixel high dynamic range (HDR) sensors. The dual-chip solution of sensors and coprocessors can achieve multiple camera price and performance points, can reuse circuit board designs, enter the market quickly, and achieve design flexibility. The performance of the sensor has been enhanced by reducing the heat generated by a single coprocessor chip, while enabling high-performance functions.

The AP0202AT2L00XPGA0-DR includes a complete imaging color tube and can support a sensor with a maximum resolution of 2 million pixels. It provides parallel and OpenLDI output interfaces. This coprocessor combines onsemi's AR0230AT, AR0132AT, AR0140AT and AR0136AT HDR automotive sensors and is suitable for digital surround-view cameras.

Performance parameters

Product: AP0202AT2L00XPGA0-DR

Type: Image Sensor

Resolution: 2 Megapixels

Frames per second: 30 fps

Package/Box: VFBGA-100

Qualification: EC-Q100

Application scenarios

The AP0202AT2L00XPGA0-DR is mainly used for digital surround view cameras, including:

Panoramic, rear-view and front-view cameras

• Replace the camera in the blind spot/side rearview mirror

• Car observation/processing fusion camera
