Mingjiada Electronics——Supply [TI] LM27402SQ High-Performance Synchronous Buck Controller

The LM27402SQ is a 3V to 20V voltage mode synchronous buck controller with DCR current sense. The device's voltage mode control loop incorporates input voltage feedforward to maintain stability over the entire input voltage range. The switching frequency is adjustable from 200kHz to 1.2MHz.

Model No.: LM27402SQ

Package: WQFN-16

Type: Synchronous Buck Controller

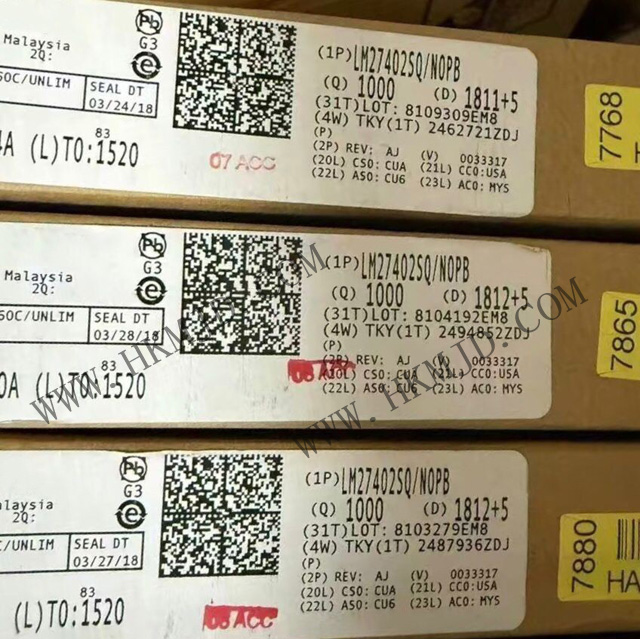

Product Diagram:

Product Description:

The LM27402SQ is a voltage mode synchronous DC/DC buck controller with lossless inductor DCR current sensing. Sensing inductor current without the need for additional resistive power transfer system components improves overall efficiency and facilitates the continuous execution of accurate current sensing, while a 0.6V ±1% voltage reference ensures high accuracy and low voltage characteristics at the output.The LM27402SQ has an input operating voltage range of 3V to 20V, and is suitable for use with a wide range of input power supply rails.

LM27402SQ Specifications:

Topology: Buck

Number of Outputs: 1 Output

Switching Frequency: 200 kHz to 1.2 MHz

Duty Cycle - Maximum: 95 %

Output Voltage: 600 mV to 18.6 V

Output Current: 30 A

Minimum Operating Temperature: - 40 °C

Maximum Operating Temperature: +125 °C

Mounting Style: SMD/SMT

Package/Case. WQFN-16

LM27402SQ Applications:

High-current, low-voltage power supplies for FPGAs and ASICs

General-purpose high-current buck converters

DC/DC converters and POL modules

Telecom, datacom, networking, distributed power architectures

For more product information about Synchronous Buck Controller LM27402SQ, please visit the official website of Mingjiada Electronics (www.hkmjd.com).
