[Supply Original IC] ISO1410BDWR (TI) Galvanically-Isolated Differential Line Transceivers

Shenzhen Mingjiada Electronics Co., Ltd.——Long term supply of TI (ISO1410BDWR) Galvanic Isolated Differential Line Transceiver for TIA/EIA RS-485 and RS-422 applications.

Product Details:

The ISO1410BDWR is a 500Kbps, half-duplex, 5kVrms isolated RS-485 and RS-422 transceiver with EMC protection. Designed for use in harsh industrial environments, the ISO1410BDWR's bus pins are designed to withstand high-level IEC Electrostatic Discharge (ESD) and IEC Electronically Fast Transient (EFT) events without the need for additional components on the bus for system-level protection. These devices are available with basic and enhanced isolation.

Model Number: ISO1410BDWR

Package: SOIC-16

Type: Isolated RS-485/RS-422 Transceiver

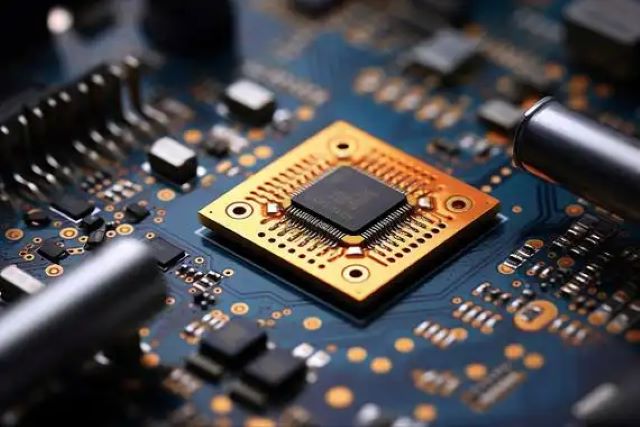

Product Diagram:

ISO1410BDWR Product Attributes:

Type: Transceiver, Isolated

Protocol: RS422, RS485

Number of Drivers/Receivers: 1/1

Duplex: Half

Receiver Hysteresis: 30 mV

Data Rate: 500kbps

Voltage - Supply: 1.71V ~ 1.89V, 2.25V ~ 5.5V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type. : Surface Mount

Package/Case: 16-SOIC (0.295", 7.50mm wide)

Vendor Device Package: 16-SOIC

ISO1410BDWR Applications

Grid Infrastructure

Photovoltaic Inverters

Factory Automation and Control

Motor Drives

HVAC Systems and Building Automation

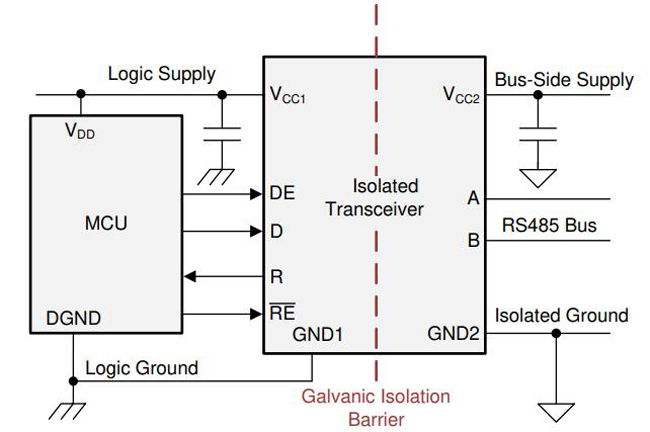

ISO1410BDWR - Simplified Application Schematic:

[Mingjiada Electronics] Long-term supply of TI (ISO1410BDWR) 5kVrms isolated RS-485 and RS-422 transceivers, for more product information about transceiver ISO1410BDWR, welcome to contact Mingjiada Electronics:
