The LT5400BCMS8E-3 is a high-performance matched resistor network device ‌ designed for signal conditioning applications in differential amplifiers, precision dividers, references and bridge circuits.

Its main features include:

Outstanding matching performance

Grade A: 0.01% matching accuracy

Grade B: 0.025% matching accuracy

0.2ppm/ºC matched temperature drift

±75V working voltage (±80V absolute maximum value)

Absolute resistance value temperature drift of 8ppm/ºC

Long-term stability: < 2ppm (at 2000 hours)

Operating temperature range: -55 ° C to 150 ° C

8-pin MSOP package

Explanation

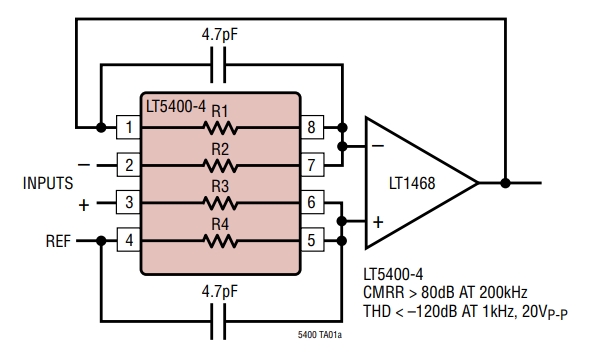

The LT5400BCMS8E-3 is a network of four matching resistors, which has excellent matching specification indicators throughout the entire temperature range. When configuring the LT5400BCMS8E-3 in a differential amplifier, matching is also specified. This enhanced matching specification ensures that the performance of CMRR is improved by more than twice compared to when using independent matching resistors.

All four resistors can be used independently and bias applied, making the LT5400BCMS8E-3 a convenient and universal choice for any application that benefits from matching resistors.

The LT5400BCMS8E-3 resistor network provides the precise proportional stability required in high-accuracy differential amplifiers, voltage references, and bridge circuits.

The LT5400BCMS8E-3 adopts a space-saving 8-pin MSOP package and has a specified temperature range of -55 ° C to 150 ° C.

In addition, the LT5400BCMS8E-3 mainly has the following parameters:

Circuit type: Isolation

Resistance (ohms) : 10k, 100k

Tolerance: ±15%

Resistor number: 4

Resistor matching rate: ±0.025%

Resistor matching rate drift: ±0.2ppm/°C

Number of pins: 8

Power per component: 800mW

Temperature coefficient: ±25ppm/°C

Operating temperature: 0°C to 70°C

Application: Voltage Divider (TCR matching)

Installation type: Surface mount type

Packaging/Shell: 8-MSOP-EP

Size/Dimension: 3.00mm x 3.00mm

Height - Installation (maximum) : 1.10mm

Application scenarios

The LT5400BCMS8E-3 is suitable for various application scenarios that require high-precision matching resistors, including but not limited to:

Differential amplifier

Reference frequency divider

Precise addition/subtraction operations
