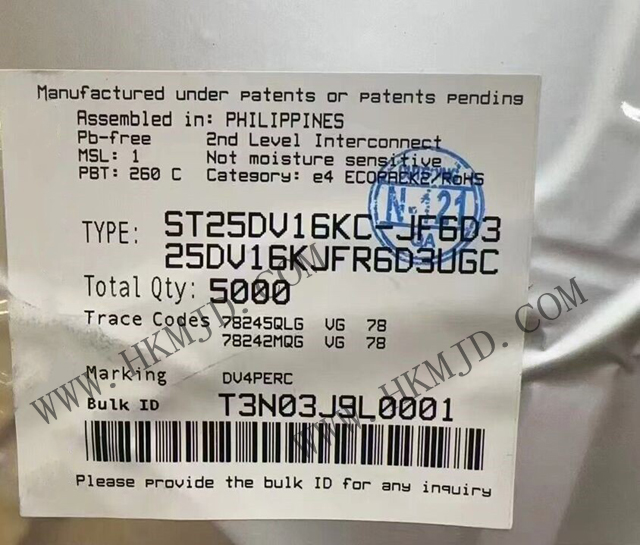

Shenzhen Mingjiada Electronics Co., Ltd. supplies ST25DV16KC-JF6D3 Dynamic NFC/RFID Tag IC with 16-Kbit EEPROM and Fast Transmission Mode Function

Description

The ST25DV16KC-JF6D3 device provides 16 Kbit electrically erasable programmable memory (EEPROM) for NFC RFID tags.The ST25DV16KC provides two interfaces. The first is an I2C serial link that can be operated from a DC power supply. The second is an RF link, which is activated when the ST25DV16KC is used as a contactless memory, which is powered by the received electromagnetic wave carrier.

All features

I2C interface

2-wire I2C serial interface supports 1MHz protocols

Single supply voltage: 1.8V to 5.5V

Multi-byte write programming (up to 256 bytes)

Configurable I2C slave address

Contactless interface

Based on ISO/IEC 15693

NFC Forum Type 5 tag certified by the NFC Forum

Supports all ISO/IEC 15693 modulation, coding, subcarrier modes and data rates

Customised fast read access up to 53 kbit/s

Single and multiple block reads (same as Extended command)

Single and multiple data block writes (up to 4) (same as Extended command)

Internal tuning capacitance: 28.5 pF

Memory

Up to 64 Kb of EEPROM (version dependent)

I2C interface access bytes

RF interface access block (4 bytes)

Write time:

Via I2C: 1-16 bytes typically 5 ms

Via RF: 1 block typically 5 ms

Data retention: 40 years

Number of write cycles erasable:

1 million write cycles at 25 °C

600,000 write cycles (at 85 °C)

500,000 write cycles (at 105 °C)

400,000 write cycles (at 125 °C)

Fast transfer mode

Fast data transfer between I2C and RF interfaces

Half-duplex 256-byte dedicated buffer

Energy capture

Analogue output pins to power external components

Data protection

User memory: 1 to 4 configurable areas, read and/or write protected by three 64-bit ciphers in RF and one 64-bit cipher in I2C

System configuration: write protection via 64-bit cipher in RF and 64-bit cipher in I2

GPO

Interrupt pins can be configured for multiple RF events (field change, memory write, active, end of fast transfer, user set/reset/pulse) and I2C events (memory write complete, RF switch off)

Open drain or CMOS output (version dependent)

RF management

RF command interpreter enabled/disabled via I2C host controller

I2C priority: immediately disconnect RF switch from I2C

Temperature Range

Range 6:

-40 °C to 85 °C

Range 8:

From -40 °C to 85 °C (UDFPN8 and UFDFPN12 only)

From -40 °C to 125 °C (SO8N and TSSOP8 only, up to 105 °C with RF interface)

Packages

8-pin and 12-pin packages

ECOPACK2 (RoHS compliant)
