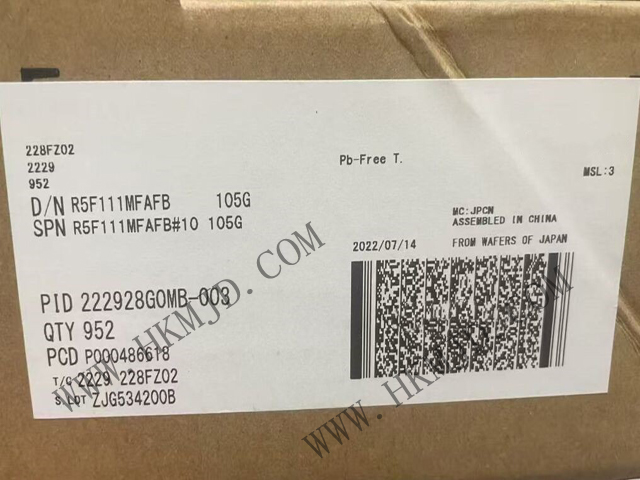

Mingjiada Electronics is offering the R5F111MFAFB, a 16-bit microcontroller (MCU) manufactured by Renesas Electronics, belonging to the RL78/L1x series and featuring the RL78 core. It is primarily designed for low-power, high-integration embedded applications such as industrial control, consumer electronics, medical devices, and automotive electronics. Below is a detailed description of the product:

R5F111MFAFB Product Specifications

Core Processor: RL78 core, 16-bit

Operating Speed: Up to 24MHz

Package: 80-LQFP

Operating Voltage: 1.6V to 3.6V

Operating Temperature: -40°C to 85°C

Electrical Parameters

Input/Output (I/O) Count: 55

Program Storage Capacity: 96KB (96K x 8)

Program Memory Type: Flash

EEPROM Capacity: 8K x 8

RAM Capacity: 10K x 8

Data Converters: A/D 11x8/12-bit, D/A 2x8-bit

Oscillator Type: Internal

R5F111MFAFB Product Features

Low-power design: Suitable for power-sensitive applications, offering excellent energy efficiency and extending device battery life.

Rich peripheral functions: Integrated with various communication interfaces such as CSI, I2C, LIN, UART/USART, as well as peripheral functions like LCD, LVD, POR, PWM, and WDT, to meet diverse application requirements.

High Integration: Integrates multiple functions into a single chip, reducing device size and weight, making it suitable for devices with space constraints.

Excellent Compatibility: Compatible with various peripheral devices and systems, facilitating development and integration.

R5F111MFAFB Application Scope

Consumer Electronics: Suitable for smart home appliances, personal electronic devices, etc., providing low-power and high-performance solutions.

Industrial Control: Suitable for industrial automation control systems, such as motor control and sensor data acquisition, enhancing industrial production efficiency and precision.

Medical Devices: Can be used in medical monitoring devices and portable medical instruments, ensuring device reliability and stability.

Automotive Electronics: Can be used in body control systems and in-vehicle entertainment systems, meeting the reliability and safety requirements of automotive electronics.
