Broadcom's second-generation WiFi-7 chipset: BCM6765A0KFEBG access point chip for home users

Broadcom's second-generation WiFi-7 chipset: BCM6765A0KFEBG access point chip for home users

Source:our siteTime:2024-04-12Views:

Product Introduction:The BCM6765 is a dual-channel 2x2 320 MHz Wi-Fi 7-chip system-on-chip (SoC) communications processor that supports low-power, small-size multi-gigabit access points, routers, Repeaters, and service provider gateways for residentia…

Product Introduction:

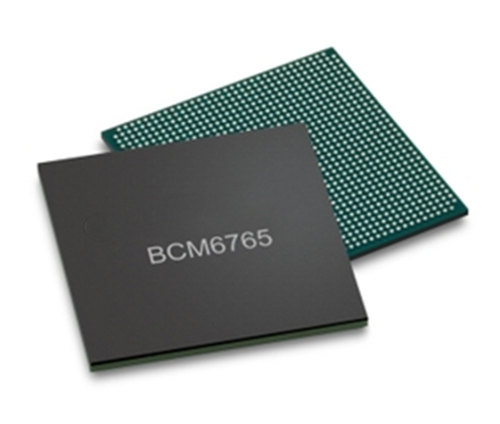

The BCM6765 is a dual-channel 2x2 320 MHz Wi-Fi 7-chip system-on-chip (SoC) communications processor that supports low-power, small-size multi-gigabit access points, routers, Repeaters, and service provider gateways for residential applications. The SoC features a quad-core ARMv8 CPU with a dual 802.11be 2x2 spatial stream 320 MHz WLAN radio and an integrated 802.3-compatible 10 Gigabit Ethernet PHY.


Device: BCM6765A0KFEBG

Type: System-on-chip SoC

Package: BGA

Applications: Residential Wi-Fi access points, routers, and extenders


peculiarity

Integrated quad-core 2.0GHz ARMv8 CPU

Dual-channel 2x2 radio for 2.4, 5 and 6 GHz operation

Integrated 2.4GHz power amplifier

Digital predistortion (DPD) external FEMs are supported to reduce power consumption

Up to 8.64 Gbps combined PHY rate

Up to 320 MHz channel bandwidth

4096-QAM modulation

Multi-link Operation (MLO), supports up to 3 links with an external third radio

Fully compliant with IEEE and WFA Wi-Fi 7 R1 specifications

Accelerated support

Automatic Frequency coordination (AFC) support

Integrated 10 Gigabit Ethernet PHY compliant with IEEE 802.3 standard

16-bit DDR4-3200 and LPDDR4/4x-4267 memory interfaces

Dual PCIe 3rd Generation controller (Dual lane + Single lane)

10 Gbps USXGMI-S port

Dual USB ports (3.2 + 2.0)


Shenzhen Mingjiada Electronics Co., LTD. (sold) (recycled) for home users of BCM6765A0KFEBG access point chip.

If interested, please contact Mr. Chen:

Tel: 13410018555

Email: chen13410018555@163.com
