Supply ADI Products MAX20313EWC Adjustable Current Limit Switch, Up to 6A Current, Low On-resistance

Supply ADI Products MAX20313EWC Adjustable Current Limit Switch, Up to 6A Current, Low On-resistance

Source:our siteTime:2024-03-19Views:

Shenzhen Mingjiada Electronics Co., Ltd. New and Original Supply ADI Products MAX20313EWC Provides Adjustable Current Limit with High Accuracy, Up to 6A Current, Low On-resistanceProduct Model:MAX20313EWC+TDescription: IC CURRENT SWITCH 5% 12WLPLot：L…

Shenzhen Mingjiada Electronics Co., Ltd. New and Original Supply ADI Products MAX20313EWC Provides Adjustable Current Limit with High Accuracy, Up to 6A Current, Low On-resistance


Product Model:MAX20313EWC+T

Description: IC CURRENT SWITCH 5% 12WLP

Lot：Latest

Detailed Description: Current Switch Regulator 20mA 12-WLP (1.65x1.45)


Features

Provides reliable protection

Adjustable current limit (500mA to 6A)

Overload current limiting (2A to 6A) Accuracy: ±5%

Current Monitor

Low RON 10mΩ (typical)

Reverse current protection

Short circuit protection

Thermal shutdown protection

Space saving

12-pin, 0.4mm pitch, 1.68mm x 1.48mm WLP package


Applications

Data modem cards

Portable media players

RF power amplifiers in mobile phones

SDXC card power protection

USB ports

UTCA/ATCA Platform

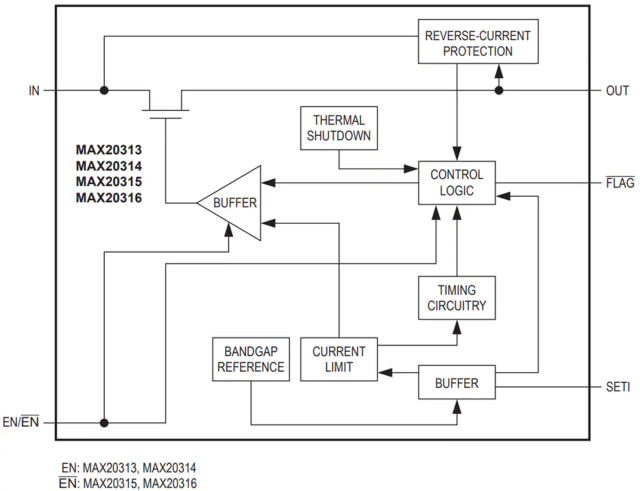

Functional Block Diagram



If you are interested, please feel free to contact Mr Chen by phone:

Tel: +86 13410018555

Email: sales@hkmjd.com

Company website: www.hkmjd.com
