Supply Ethernet VSC7546TSN-V/5CC, VSC7546TSN-V/5CC-VAO Industrial Ethernet Switch With TSN Support

Supply Ethernet VSC7546TSN-V/5CC, VSC7546TSN-V/5CC-VAO Industrial Ethernet Switch With TSN Support

Source:our siteTime:2024-03-13Views:

The SparX-5i devices are 64Gbps to 200Gbps industrial Ethernet switches that support a variety of configurations including 1G, 2.5G, 10G, and 25G Ethernet ports.

Mingjiada [Supply] Ethernet VSC7546TSN-V/5CC, VSC7546TSN-V/5CC-VAO Industrial Ethernet Switch with TSN support


Overview

The VSC7546TSN SparX-5i TSN-enabled industrial Ethernet switches provide scalable solutions for time-sensitive networks (TSNs) and the Industrial Internet of Things (IIoT).The SparX-5i devices are 64Gbps to 200Gbps industrial Ethernet switches that support a variety of configurations including 1G, 2.5G, 10G, and 25G Ethernet ports.


The SparX-5i devices offer a rich set of industrial Ethernet switch features, including a complete TSN feature set, L2 switching, L3 routing, seamless redundancy, high accuracy timing and extended temperature range. These Ethernet switches feature multi-level Versatile Content-Aware Processor (VCAP™) technology that provides VLAN and QoS processing for differentiated services, security through intelligent frame processing and flexible frame manipulation. The powerful 1GHz dual-core CPU fully manages Layer 2 and Layer 3 industrial Ethernet switch solutions.


The SparX-5i TSN-enabled industrial Ethernet switch is available in a 25mm x 25mm ball grid array (BGA) package.

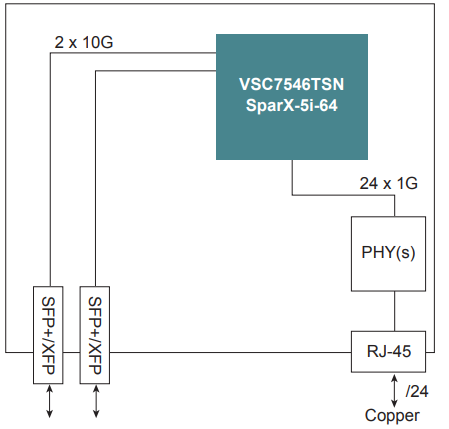

24 Cu + 2 SFP + Industrial Ethernet Switch

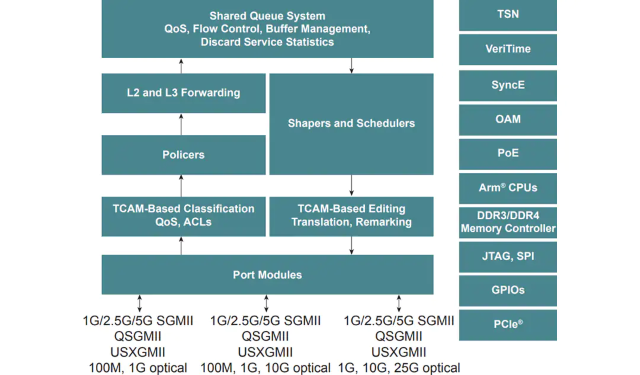

Block Diagram



If you have any request, please contact Mr Chen by phone:

Tel: +86 13410018555

Email: sales@hkmjd.com

Home URL: www.hkmjd.com
