As the flagship product of the RX series of 32-bit MCUS, the RX64M series is the first to adopt the 40nm process. This latest series includes a total of 112 products, all of which integrate the new CPU core "RXv2" of the RX series released in November 2013. It operates at a frequency of 120MHz and is equipped with zero-waiting period high-speed flash memory. It is suitable for industrial and network devices that require high-speed real-time performance and large-capacity memory. The new type of MCU enables system designers to develop high-performance, low-power industrial devices that support multiple communication functions more quickly and efficiently.

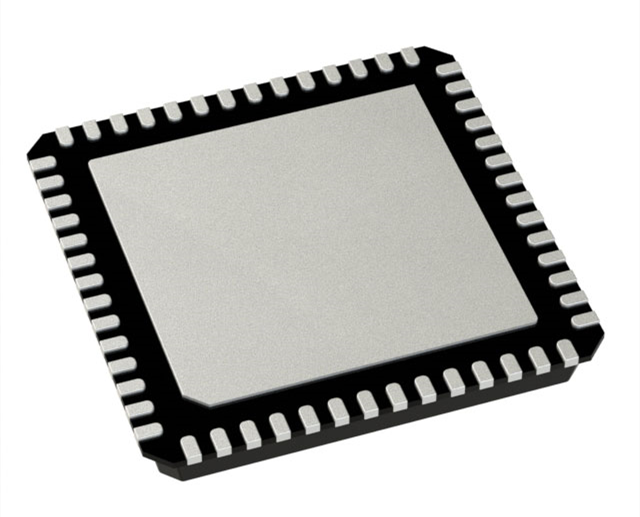

R5F564MLCDBG 32-bit microcontroller - MCU

It integrates 4MB of flash memory and 552KB of SRAM, achieving outstanding connectivity and high performance, and is suitable for industrial equipment and other Internet of Things applications

Technical Specification

Core processor: RXv2

Kernel specification: 32-bit single-core

Speed: 120MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O number: 127

Program storage capacity: 4MB (4M x 8)

Program memory type: Flash memory

EEPROM capacity: 64K x 8

RAM size: 552K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.7V - 3.6V

Data converter: A/D 29x12b D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 176-LFBGA (13x13)

Description

The R5F564MLCDBG microcontroller adopts the powerful RXv2 core and is backward compatible with the RX core used in existing RX products. Compared with existing RX products, the CoreMark/MHz performance of the RXv2 core has increased by 1.48 times, power consumption has decreased by 40%, and code efficiency is even higher, which is conducive to achieving high-speed and low-power systems.

The R5F564MLCDBG microcontroller is equipped with a large-capacity memory of up to 4 MB of code ROM and 552 KB of working RAM. The built-in functions include the highly praised event link controller of RX200 and the rich functions of RX63N, as well as the SD card and audio interface with high market demand, and the IEEE 1588 industrial Ethernet function has been added. Therefore, the R5F564MLCDBG MCU is suitable for industrial equipment, network devices, and other applications that require advanced real-time performance and large-capacity memory.

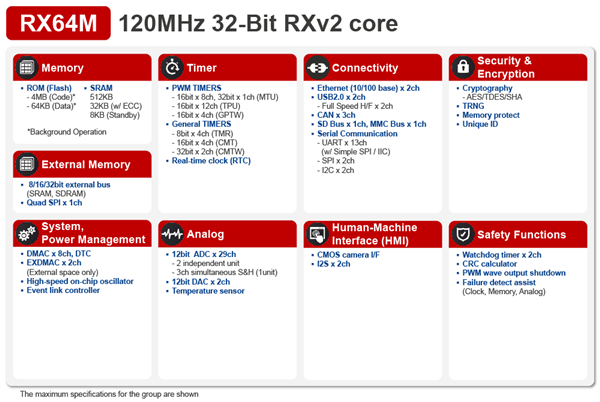

The peripheral functions built into the R5F564MLCDBG MCU

External bus

• DMAC: 8 channels

• Data Transmission Controller (DTC)

• Universal 16-bit timer

16-bit multi-functional timing pulse unit

Programmable pulse generator

• 8-bit timer: 4 channels

Compare and match the timer

• Real-time Clock (RTC)

Watchdog timer

• Independent watchdog timer

• Serial communication interface: 9 channels

• FIFO serial communication interface: 4 channels

• Serial peripheral interface

Four-wire serial peripheral Interface (QSPI)

• Serial audio interface

• I2C bus interface

IEEE1588 standard Ethernet controller

• Full-speed USB

• CAN: 3 channels

Parallel Data Capture Unit (PDC)

• 12-bit A/D converter: 8 + 21 channels

• 12-bit D/A converter: 2 channels

Temperature sensor

CRC Calculator

Power-on reset circuit (POR)

Voltage Detection Circuit (LVD)

< Optional Functions >

• SD host interface

• Encryption functions (AES, DES, SHA, True Random Number Generator (RNG))

Application scenarios

The R5F564MLCDBG microcontroller is applicable to the following various scenarios, including:

Internet of Things

Industrial equipment

Household appliances

The field of power grid
