The LMH3401IRMSR is a 7GHz, ultra-wideband, fully differential amplifier, widely used in high-speed data acquisition, communication systems, test equipment, and various electronic devices that require high bandwidth and high linearity.

This device has the following main characteristics:

It has excellent single-ended to differential conversion performance in the frequency range from DC to 2GHz

7GHz, -3 dB bandwidth

It has excellent second harmonic (HD2) and third harmonic (HD3) performance at 2GHz:

At 10MHz, it is -96 (HD2) and -102 (HD3).

At 500MHz, it is -79 (HD2) and -77 (HD3).

At 1GHz, it is -64 (HD2) and -72 (HD3).

At 2GHz, it is -55 (HD2) and -40 (HD3).

Achieve the best OIP3 performance at 2GHz:

It is 45dBm at 200MHz

It is 33dBm at 1GHz

It is 24dBm at 2GHz

Fixed single-ended to differential voltage gain: 16dB

The noise factor is 9dB at 200MHz (RS = 50Ω)

Conversion rate: 18,000V/μs

Supports single power supply or separate power supply

Power failure function

Power supply current: 55mA

Product Details

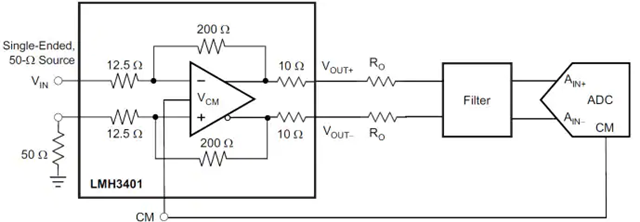

The LMH3401IRMSR ultra-wideband fully differential amplifier is a high-performance differential amplifier optimized for radio frequency (RF), intermediate frequency (IF), or high-speed time-domain applications. This device is highly suitable for DC-coupled or AC-coupled applications that require single-ended to differential conversion when driving analog-to-digital converters (ADCs).

When operating in single-ended input to differential output or differential input to differential output modes, the LMH3401IRMSR generates very low second and third order distortions. On-chip resistors simplify the implementation of printed circuit boards (PCBS) and can provide the highest performance within the available bandwidth range of 2GHz. This performance makes the LMH3401IRMSR highly suitable for applications such as testing and measurement, broadband communication, and high-speed data acquisition. This device provides common-mode reference input pins, enabling the amplifier output to be common-mode and meet the ADC input requirements. The operating power supply voltage of LMH3401IRMSR ranges from 3.3V to 5.0V. And it supports dual power supply to meet specific application requirements.

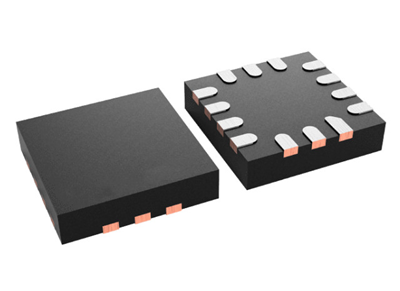

This performance level can only be achieved when using a 5.0V power supply and reaching an ultra-low power consumption of 275mW. The power-off function can also achieve energy conservation. The LMH3401IRMSR is fabricated using Texas Instruments' (TI) advanced complementary BiCMOS process and is packaged in a space-saving 14-pin ultra-thin square flat leadless (UQFN) package. The specified operating temperature range is from -40 °C to 85°C.

Application scenarios

The LMH3401IRMSR is widely applied in various scenarios, including:

Gigabit-per-second (GSPS) analog-to-digital converter (ADC) driver

ADC driver for high-speed data acquisition

ADC driver for 1GBPS Ethernet based on microwaves

Analog-to-digital converter (DAC) buffer

Broadband gain stage

Single-ended to differential conversion

Level converter

Key parameters

Product: LMH3401IRMSR

SR - Conversion rate: 18 kV/us

CMRR - Common mode rejection ratio: 72 dB

Vos - Input bias voltage: 1.2 mV

Minimum operating temperature: -40 °C

Maximum operating temperature: + 85°C

Installation style: SMD/SMT

Package/Box: UQFN-14
