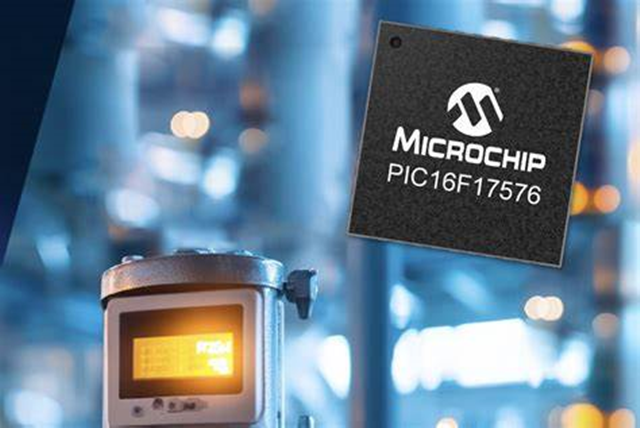

For devices that need to quickly capture transient analog signals, achieving rapid response while minimizing power consumption as much as possible is crucial, especially in battery-powered applications. To meet this demand, Microchip Technology Inc. Recently, the PIC16F17576 series of single-chip microcontrollers (MCUS) products were released. This series of single-chip microcomputers integrate low-power peripherals and can accurately measure variable analog signals.

The PIC16F17576 series of single-chip microcontrollers are equipped with A new type of low-power comparator and reference voltage combination module. They can still operate when the MCU core is in sleep mode, support continuous analog measurement, and have a current consumption of less than 3.0 µA. The Analog Peripheral Manager (APM) minimizes total energy consumption by controlling the start and stop states of peripherals, enabling battery-powered applications to effectively monitor signals without significantly increasing power consumption.

The PIC16F17576 series of single-chip microcontrollers are specifically designed for applications involving the measurement of variable analog signals, and their operational amplifiers support software-controlled gain stages. This feature enables a single operational amplifier to switch between multiple gain modes, which helps to suppress noise while maintaining accuracy and energy efficiency. This series of MCUS is equipped with up to four operational amplifiers and a 12-bit differential analog-to-digital converter (ADC), supporting automatic averaging function and enabling precise signal measurement over a wide input range.

Greg Robinson, vice president of Microchip's Microcontroller business unit, said: "Sensor systems often become rapidly complex due to the need for multiple analog components, resulting in an increase in circuit board size, cost and power consumption." Through the integrated simulation function of the low-power PIC16F17576 series single-chip microcomputer, we have significantly simplified the system complexity. Users can reduce the number of components and lower power consumption, thereby saving costs and simplifying the overall design process.

The PIC16F17576 series of single-chip microcomputers are widely used in analog signal measurement in fields such as environmental and industrial monitoring, smart home, and building automation. Key applications include vibration and strain measurement, flow metering, gas detection, cold asset tracking and motion sensing. Please visit the official website to learn about the details of the full range of Microchip PIC® MCU products.

Development tools

The PIC16F17576 series of microcontrollers are supported by the MPLAB® X integrated development environment (IDE) and the MPLAB code configurator, enabling convenient management of APM and analog peripheral functions. This series of devices is compatible with the Microchip Curiosity Nano EV14L29A development board and the MPLAB PICkit™ development tool.

Supply and Pricing

The PIC16F17576 MCU is now available for supply, with a minimum order price of $0.57 per 10,000 units. For more information or to make a purchase, please contact a Microchip sales representative, a global authorized distributor, or visit the Microchip Procurement and Customer Service website.
