HMC394LP4E: Programmable 5-bit counter SMT, DC-2.2GHz
Its core features include:
SSB phase noise: -153 dBc/Hz (100 kHz)
Optional frequency division: 2 to 32
Parallel 5-bit control
Wide input power range: -20 to +10 dBm
4x4 mm lead-free SMT package
These features make HMC394LP4E widely used in electronic devices that require high frequency, programmable counting capabilities.
Application field
The HMC394LP4E is suitable for applications that require high frequency counting, including:
Satellite communication system
peer-to-peer
Point-to-multipoint radio
LMDS
SONET
Product details

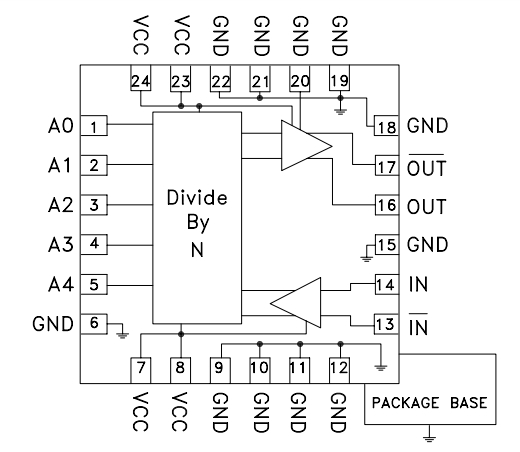

The HMC394LP4E is a low noise GaAs HBT programmable 5-bit counter in a 4x4 mm lead-free surface mount package. At input frequencies up to 2.2 GHz, the device can perform continuous frequency division in the N range 2 to 32. The output voltage swing is 800 mV, and the duty cycle is inversely proportional to N. At 100 kHz offset, the additive SSB phase noise of the HMC394LP4E is as low as −153 dBc/Hz, making it ideal for low-noise frequency synthesizer applications.
Technical specification
Function: Counter
Frequency: 0Hz ~ 2.2GHz
Rf Type: Common
Secondary properties: -
Mounting type: Surface mount type
Device package: 24-QFN (4x4)
Product Number: HMC394LP4E
Contact us
If you need to obtain the sample of [HMC394LP4E] or purchase inquiry, you can contact Mingjiada Electronics by visiting the official website www.hkmjd.com.
