LTC5551IUF: 300MHz to 3.5GHz ultra-high dynamic range down-conversion mixer

Advantages and characteristics

+36dBm Input IP3

2.4dB conversion gain

Low noise index: <10dB

+18dBm Ultra-high input P1dB

670mW power consumption

2.5V to 3.6V operating voltage

50Ω single-ended RF and LO inputs

0dBm LO Drive level

Low power mode

- 40 °C to 105°C Operating temperature (TC)

Compact solution size

Enable the pin

16 pin (4mm x 4mm) QFN package

Due to its high integration and low power consumption, the LTC5551IUF is ideal for wireless communication devices that require a high performance receiver ‌.

Product introduction

‌LTC5551IUF is a device optimized for RF downconversion mixer applications requiring very high dynamic range ‌. It covers the RF frequency range from 300MHz to 3.5GHz and the LO frequency range from 200MHz to 3.5GHz. The LTC5551IUF is highly integrated and minimizes total solution cost, board space, and system-level deviation, while providing an extremely high dynamic range ‌.

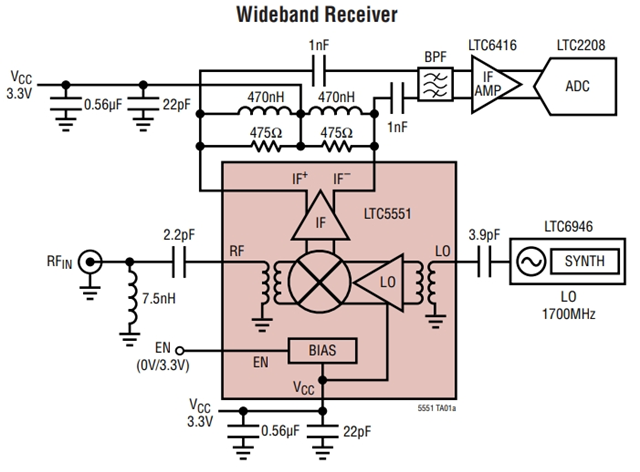

The LTC5551IUF features very high IIP3 and P1dB and low power consumption. A typical application of this device is a base station receiver covering the 700MHz to 2.7GHz frequency range. RF inputs can be matched to a wide range of frequencies, and IF can be used at frequencies up to 1GHz.

A low power mode can be initiated by pulling the ISEL pin to a high level, which reduces the power consumption by about 1/3, but the IIP3 indicator will be reduced to about +29dBm accordingly. In addition, the EN pin can be used to turn on and off the mixer. The LTC5551IUF's high integration minimizes overall solution cost, board space, and system-level deviation while providing an extremely high dynamic range for demanding receiver applications.

Application field

Typical applications of the LTC5551IUF include:

GSM, LTE, LTE-advanced base stations

RPT (repeater)

DPD observation receiver

Public safety Radio, military and defense

Avionics radio equipment and TCAS transponders

Active phased array antenna

White band radio receiver

Technical parameter

Rf type: mobile phone, GSM

Frequency: 300MHz ~ 3.5GHz

Number of mixers: 1

Gain: 3.2dB

Noise factor: 10.9dB

Auxiliary attribute: down frequency converter

Current - Supply: 204mA

Voltage - Power supply: 2.5V ~ 3.6V

Mounting type: Surface mount type

Device package: 16-QFN (4x4)

Product Number: LTC5551IUF
