Shenzhen Mingjiada Electronics Co., Ltd. New and Original (Distributed TI) Power Supply IC TPS54360BDDAR 60V Input, 3.5A Step-Down DC/DC Converter with Eco-mode™

Product Details

The TPS54360B is a 60V, 3.5A step-down regulator with an integrated high-side MOSFET. It features current mode control for simple external compensation and flexible component selection. A low ripple pulse jump mode reduces the no-load supply current to 146µA, and when the enable pin is pulled low, the shutdown supply current is reduced to 2µA.

The undervoltage blocking is internally set to 4.3V, but can be increased with the enable pin. The device can internally control the output voltage start-up ramp to control the start-up process and eliminate overshoot.

A wide switching frequency range allows optimisation of efficiency or external component size. Frequency foldback and thermal shutdown protect internal and external components from damage during overload conditions.

The TPS54360B is available in an 8-pin thermally enhanced HSOIC PowerPAD™ package.

Product Attributes

Manufacturer: Texas Instruments

Product Category: Switching Regulators

Output Voltage: 800 mV to 58.8 V

Output Current: 3.5 A

Input Voltage (Max): 60 V

Number of Outputs: 1 Output

Topology: Buck

Package / Case: SO-PowerPad-8

Mounting style: SMD/SMT

Switching frequency: 100 kHz to 2.5 MHz

Quiescent current: 146 uA

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 150 C

Series: TPS54360B

Input Voltage (min): 4.5 V

Trademark: Texas Instruments

Input Voltage: 4.5 V to 60 V

Humidity Sensitivity: Yes

Product Type: Switching Voltage Regulators

Shutdown: Shutdown

Factory Package Quantity: 2500

Sub Category: PMIC - Power Management ICs

Supply Voltage - Min: 4.5 V

Type: DC/DC Converter

Unit Weight: 98 mg

Applications

12V, 24V and 48V industrial and communication power systems

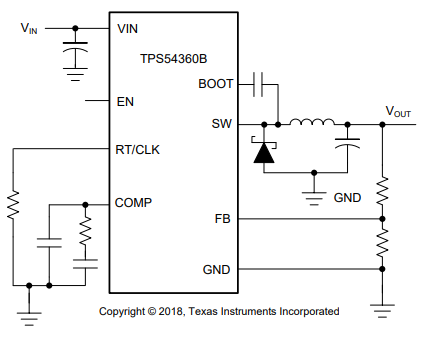

Simplified schematic
