Product Overview

The STM8S105K6T3CTR is a mainstream basic 8-bit microcontroller (MCU) from STMicroelectronics, designed for high-performance and low-power applications. As the representative product of STM8S series, STM8S105K6T3CTR is popular in industrial control, home appliance, consumer electronics and other fields with its 32 KB Flash memory, 16 MHz CPU frequency and integrated EEPROM.

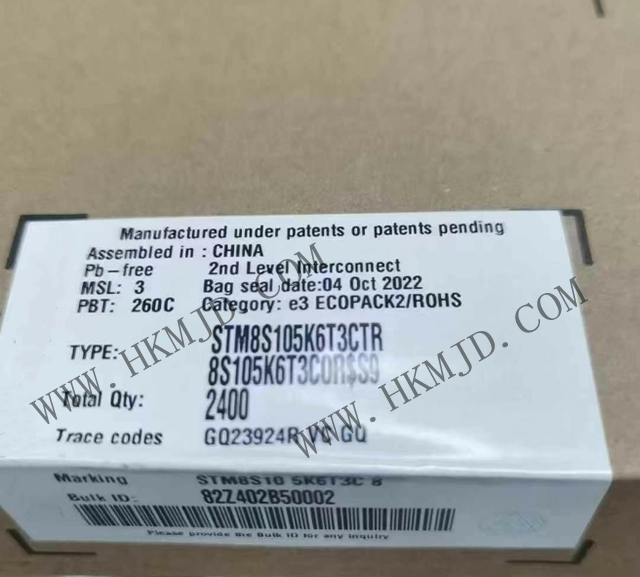

As a professional electronic components supplier, Shenzhen Mingjiada Electronics Co., Ltd. has been supplying high-performance 8-bit microcontroller STM8S105K6T3CTR in stock for a long time, which is the mainstream basic 8-bit MCU series launched by STMicroelectronics and widely used in industrial control, home appliances, automotive electronics and other fields.

Product Features

High-performance CPU

The STM8S105K6T3CTR features a 16MHz STM8 core with a Harvard architecture and a three-stage pipeline design that delivers up to 20 MIPS of processing power. This high-performance CPU design enables it to excel in complex tasks while maintaining low-power operation.

Mass Storage

The chip has an internal 32KB Flash programme memory that supports up to 10,000 erase/write cycles. In addition, a 1KB true-data EEPROM with up to 300,000 write/erase cycles is also integrated, making it ideal for applications that require frequent data storage.

Low Power Design

The STM8S105K6T3CTR operates from 2.95V to 5.5V and supports multiple low-power modes, including standby, stop and low-power run modes. This flexible power management design makes it ideal for battery-powered portable devices.

Rich Peripheral Interfaces

Communication Interface: Supports UART, SPI and I²C interfaces, capable of meeting a wide range of communication needs.

Analogue-to-digital converter: Built-in 10-bit ADC supporting up to 10 channels for high-precision analogue signal acquisition.

Timer: Provides multiple general-purpose timers and advanced control timers, and supports PWM output.

I/O interface: with up to 38 I/O pins, supporting multiple operating modes.

High Reliability

Manufactured in advanced 130nm process technology, the STM8S105K6T3CTR features a robust I/O design that resists current injection. In addition, an independent watchdog timer and clock security system are integrated to ensure stable system operation.

Application Scenarios

STM8S105K6T3CTR is widely used in the following areas:

Home appliance control: e.g. motor control and sensor interface for smart home appliances.

Industrial automation: for control and data acquisition of industrial equipment.

Automotive electronics: for control units of in-vehicle electronic devices.

Portable devices: such as handheld devices and smart meters.

Advantages of Mingjiada Electronics

With its perfect supply chain system and professional technical support team, Mingjiada Electronics ensures that all STM8S105K6T3CTR are original and genuine. The company provides fast delivery service, and provides customers with a full range of technical support from selection to application development.

For more information about STM8S105K6T3CTR or to purchase more products, please contact Mingjiada Electronics.
