LT6372IUDC-0.2 Key Features-Instrumentation Amplifier with Level Shifting and Output Clamping

LT6372IUDC-0.2 Key Features-Instrumentation Amplifier with Level Shifting and Output Clamping

Source:our siteTime:2025-03-17Views:

Product Overview:The LT6372IUDC-0.2 is a precision instrumentation amplifier (‌) manufactured by Analog Devices with excellent DC accuracy. Such high accuracy allows smaller signals to be detected and simplifies calibration requirements, especially o…

Product Overview:

The LT6372IUDC-0.2 is a precision instrumentation amplifier (‌) manufactured by Analog Devices with excellent DC accuracy. Such high accuracy allows smaller signals to be detected and simplifies calibration requirements, especially over the entire temperature range. The LT6372IUDC-0.2 integrates features into the LT6370, further improving accuracy and simplifying the interface to the ADC.


The LT6372IUDC-0.2 uses a proprietary, high-performance bipolar process that achieves outstanding accuracy and long-term stability. The LT6372IUDC-0.2 is laser fine-tuned to achieve a very low input offset voltage (60μV) and a high CMRR (80 dB, G = 1). Proprietary on-chip testing ensures gain drift (35 ppm /°C) through automatic testing.

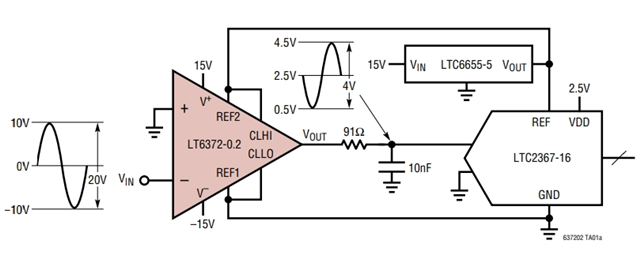

The LT6372IUDC-0.2 differential amplifier features a separate reference configuration that simplifies level conversion from the amplifier output to the center of the ADC input range. Output clamping pins are also provided to limit the voltage that can be applied to the ADC input. The input of the LT6372IUDC-0.2 is integrated with EMI filtering to maintain accuracy in the presence of severe RF interference.


The LT6372IUDC-0.2 comes in a 20-pin 3mm × 4mm QFN package. The amplifier is fully adapted to the temperature range -40 °C to 85°C.


Basic parameter

Product: LT6372IUDC-0.2

Number of channels: 1 Channel

3dB bandwidth: 4 MHz

SR - Conversion rate: 3.5V /us

CMRR - common mode rejection ratio: 80 dB

Ib - Input bias: 100 pA

Vos - Input bias voltage: 15 uV

Power supply voltage - Max: 35 V

Supply voltage - Minimum: 4.75V

Working power supply current: 2.75mA

Minimum operating temperature: -40 C

Maximum operating temperature: + 85 C

Installation style: SMD/SMT

Package/box: QFN-20


Main characteristics

Level switching and output clamping ‌ : The LT6372IUDC-0.2 has level switching and output clamping functions to ensure the stability and reliability of the signal during transmission ‌.

High precision ‌ : The LT6372IUDC-0.2 offers excellent DC accuracy, low total gain error, and high DC CMRR (common mode rejection ratio) for high precision measurement applications ‌.

Low noise ‌ : excellent noise performance, voltage noise is only 7nV/√Hz, suitable for noise-sensitive application scenarios ‌.

Wide power supply range ‌ : The LT6372IUDC-0.2 supports a wide power supply range from 4.75V to 35V for different power supply requirements ‌.

Temperature range ‌ : Operating from -40°C to 85°C, the LT6372IUDC-0.2 meets the needs of most industrial applications ‌.


Application field

The LT6372IUDC-0.2 is suitable for use in a wide range of electronic devices requiring high precision, low noise and stable performance, such as:

Biomedical ‌ : Provides stable amplification and filtering in electrocardiogram (ECG) and other biological signal processing.

Industrial control ‌ : ensures high accuracy and stability in sensor signal conditioning and data processing.

Research and education ‌ : In laboratory research and teaching, the LT6372IUDC-0.2 provides accurate signal amplification and measurement.


If you need to purchase an LT6372IUDC-0.2 amplifier, please visit www.hkmjd.com.
