The HMC6301BG46P7 is a mmWave receiver (57 GHz-64 GHz)

The HMC6301BG46P7 is a mmWave receiver (57 GHz-64 GHz)

Source:our siteTime:2025-03-13Views:

Shenzhen Mingjiada Electronics launched a new ADI HMC6301BG46P7 millimeter wave receiver, 57 ghz-64 GHz (RF receiver).IntroductionThe HMC6301BG46P7 is a complete millimeter wave receiver integrated circuit in a ROHS-compliant 6 mm 4 mm wafer-level Ba…

Shenzhen Mingjiada Electronics launched a new ADI HMC6301BG46P7 millimeter wave receiver, 57 ghz-64 GHz (RF receiver).


Introduction

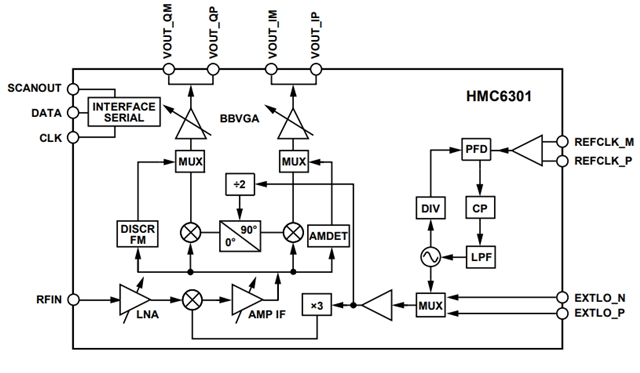

The HMC6301BG46P7 is a complete millimeter wave receiver integrated circuit in a ROHS-compliant 6 mm × 4 mm wafer-level Ball Grid Array (WLBGA) package. Includes low noise amplifiers (Lnas), image suppression filters, RF to IF downconverters, IF filters, I/Q downconverters, and frequency synthesizers. The HMC6301BG46P7 receiver operates in a frequency range of 57 GHz to 64 GHz with a bilateral modulation bandwidth of up to 1.8 GHz.


The integrated frequency synthesizer, tuned at 250 MHz, 500 MHz or 540 MHz steps, has excellent phase noise and supports modulation up to 64 QAM. Alternatively, external LO can be injected, and the HMC6301BG46P7 supports user-selectable LO characteristics or phase-coherent transmit and receive operations and modulation up to 256 QAM. The HMC6301BG46P7 provides support for various modulation formats through a universal analog baseband I/Q interface.


The HMC6301BG46P7 also has built-in AM and FM detectors for demodulation of on-key control (OOK), frequency shift keying (FSK) or minimum Frequency Keying (MSK) modulation formats, enabling lower cost and power consumption serial data links without the need for high-speed data converters.


Product advantage

1. HMC6301BG46P7 supports V band (57-64 GHz) signal reception, integrates low noise amplifier (LNA) and downconverter, provides high gain (typical value > 20 dB) and low noise factor (typical value 8 dB), significantly improves signal reception quality ‌.

2, HMC6301BG46P7 integrated image suppression filter, IF filter and I/Q downconverter, reduce the demand for peripheral components, support SPI interface to achieve flexible configuration ‌.

3, the operating temperature range covers -40°C to 85°C, suitable for industrial and vehicle environment; The 2.7V power supply voltage is compatible with various power supply schemes to ensure system stability ‌.


HMC6301BG46P7 has the following characteristics:

Frequency band: 57-64 GHz

RF signal bandwidth: up to 1.8 GHz

Noise factor: 8 dB (typical value)

Receiver gain: 0-70 dB

Digital and analog RF and IF gain control

Programmable baseband gain and filter bandwidth

Integrated frequency synthesizer

Integrated image suppression filter

Partial external loop filter

Support for external LO

On-chip temperature sensor

Supports 256-QAM modulation

Integrated AM and FM detectors

Universal analog I/Q baseband interface

Three wire serial digital interface

RoHS compliant 75-pin wafer-level ball grid array package


Application scenario

1. Millimeter wave communication system ‌

With 1.8GHz bilateral modulation bandwidth, HMC6301BG46P7 can be deployed in 60 GHz ISM band wireless links, supporting 64/256 QAM high-level modulation, to meet the 5G backpass, point-to-point high-speed data transmission requirements ‌.


‌2. High frequency wireless communication base station ‌

The high gain characteristic of HMC6301BG46P7 is suitable for the RF front end of the base station, enhancing the weak signal reception ability, improving the coverage range and anti-interference performance ‌.


‌3. Satellite communication terminal ‌

In satellite ground stations and terminal equipment, HMC6301BG46P7 realizes OOK and FSK modulation and demodulation through low-power AM/FM detector, simplifying data link design ‌.


‌4. Radar and sensing system ‌

HMC6301BG46P7 Integrated frequency synthesizer (phase noise < -90 dBc/Hz), suitable for high-precision radar detection, automatic driving MMwave radar and industrial sensing scenarios ‌.


‌5. Industrial Internet of Things (IIoT) ‌

HMC6301BG46P7 compact package (6 mm × 4 mm) and high bandwidth characteristics, support factory automation equipment, intelligent instruments wireless monitoring and real-time control ‌.


If you need to purchase HMC6301BG46P7 products, please visit our official website (www.hkmjd.com).
